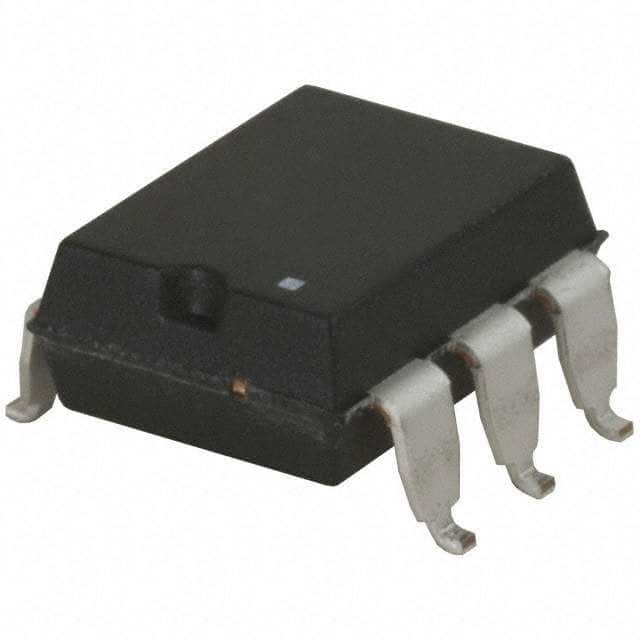

Optical Solid State Relay (SSR) featuring a 1-channel, SPST configuration. This surface mount device offers a 1A load current capability and a 60V maximum output voltage. Input is DC with a 50mA requirement, and the unit provides 3.75kV isolation. Operating temperature range spans -40°C to 85°C, with RoHS compliance and gull wing termination.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Ixys LCB710S technical specifications.
General
| Package/Case | SMD/SMT |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Load Current | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 60V |
| Mount | Surface Mount |
| Output Current | 1A |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LCB, OptoMOS® |
| Termination | Gull Wing |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Ixys LCB710S Datasheet
Download the complete datasheet for Ixys LCB710S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
