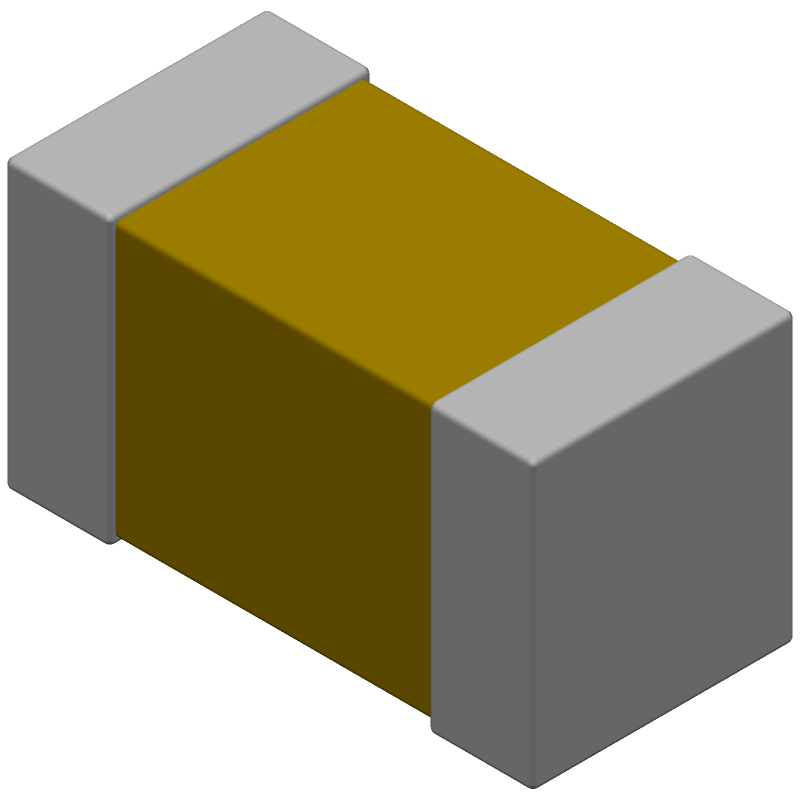

Multilayer ceramic capacitor with 2.2nF capacitance and 10V DC rating. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range, with a 5% tolerance. Surface mountable in a 0603 (1608 metric) case code, this component offers a 10% dissipation factor and is supplied on tape and reel.
Package0603
Capacitance2.2nF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Kemet C0603C222J8RACTU technical specifications.
General
| Capacitance | 2.2nF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Depth | 0.8mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 10% |
| Height | 0.8mm |
| Lead Pitch | 0.7mm |
| Length | 1.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | C |
| Termination | SMD/SMT |
| Thickness | 0.034inch |
| Tolerance | 5% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 0.031inch |
Compliance
| RoHS | Compliant |
Datasheet
Kemet C0603C222J8RACTU Datasheet
Download the complete datasheet for Kemet C0603C222J8RACTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
