Digital Potentiometer IC, 128-tap, 10kΩ resistance with 20% tolerance, featuring a linear taper. Operates with I²C interface and non-volatile memory. Supports supply voltages from 2.5V to 5.5V, with an operating temperature range of -40°C to 100°C. Packaged in a 10-MSOP UMAX case, supplied on tape and reel.
PackageUMAX
Resistance10kR
Quick Jump:
Technical Specifications
Maxim DS3502U+T&R technical specifications.
General
| Package/Case | UMAX |
| Features | I²C |
| Interface | I2C |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Non-Volatile, |
| Min Supply Voltage | 2.5V |
| Number of Circuits | 1 |
| Number of Taps | 128 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| Resistor Type | Potentiometer |
| RoHS Compliant | Yes |
| Taper | Linear |
| Tolerance | 20% |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS3502U+T&R Datasheet
Download the complete datasheet for Maxim DS3502U+T&R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

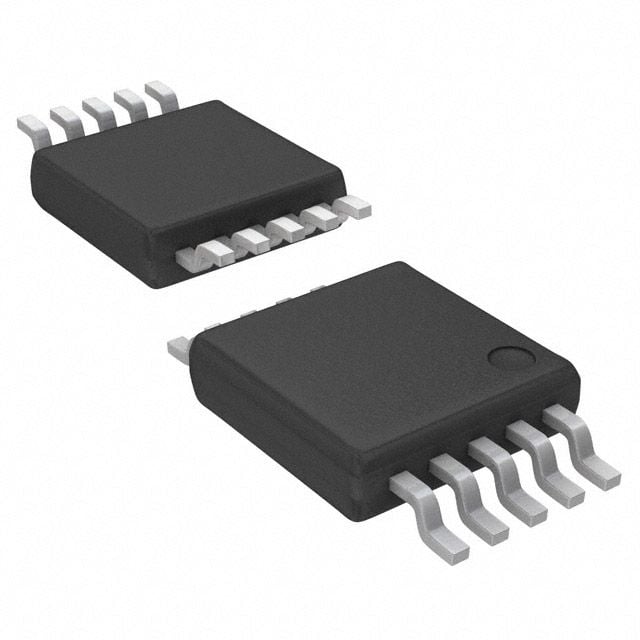

Product Images
