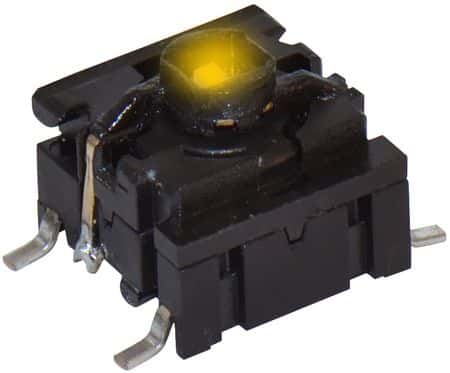

SMD tactile switch featuring a 1mm travel and SPST Off-Mom function. Constructed with a polyphenylene actuator and silver contacts, it offers a 50mA contact current rating. This illuminated switch incorporates a yellow LED and boasts an IP67 waterproof and dust-tight rating. Designed for surface mounting with gull wing termination, it operates within a -40°C to 160°C temperature range and has a mechanical life of 10,000,000 cycles.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the MEC Multimec 5GSH93542 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Material | Polyphenylene |
| Package/Case | SMD/SMT |
| Contact Current Rating | 50mA |
| Contact Material | Silver |
| Current Rating | 50mA |
| Illumination Type | Illuminated, LED |
| Max Operating Temperature | 160°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Force | 350gf |
| Packaging | Rail/Tube |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Yes |
| Series | Multimec® 5 |
| Switch Function | Off-Mom |
| Switch Travel | 1mm |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| RoHS | Compliant |
