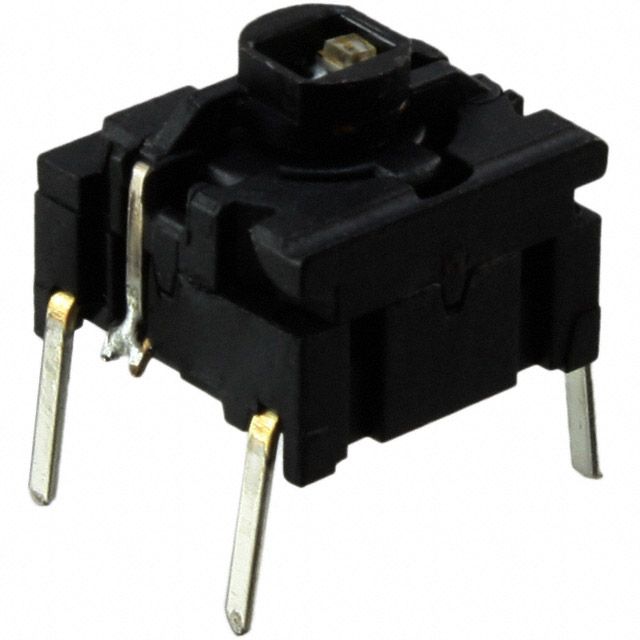

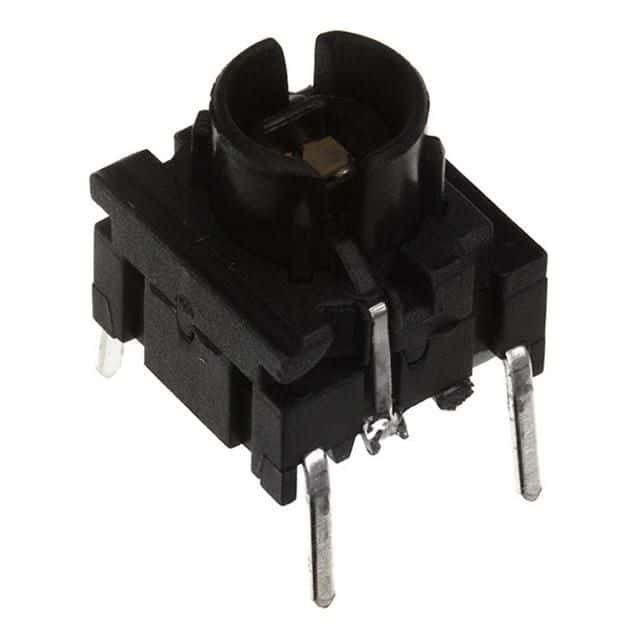

Illuminated tactile switch featuring a SPST-NO throw configuration with a 1mm travel and 350gf operating force. This through-hole mount component offers a 50mA contact current rating at 24V, utilizing silver contacts and a polyphenylene actuator. Rated IP67 for waterproof and dust-tight protection, it boasts a mechanical life of 10 million cycles and operates within a -40°C to 160°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the MEC Multimec 5GTH93522 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Material | Polyphenylene |
| Contact Current Rating | 50mA |
| Contact Material | Silver |
| Current Rating | 50mA |
| Illumination Type | Illuminated, LED |
| Material | Plastic |
| Max Operating Temperature | 160°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Force | 350gf |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Yes |
| Series | Multimec® 5 |
| Switch Function | Off-Mom |
| Switch Travel | 1mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
| RoHS | Compliant |
