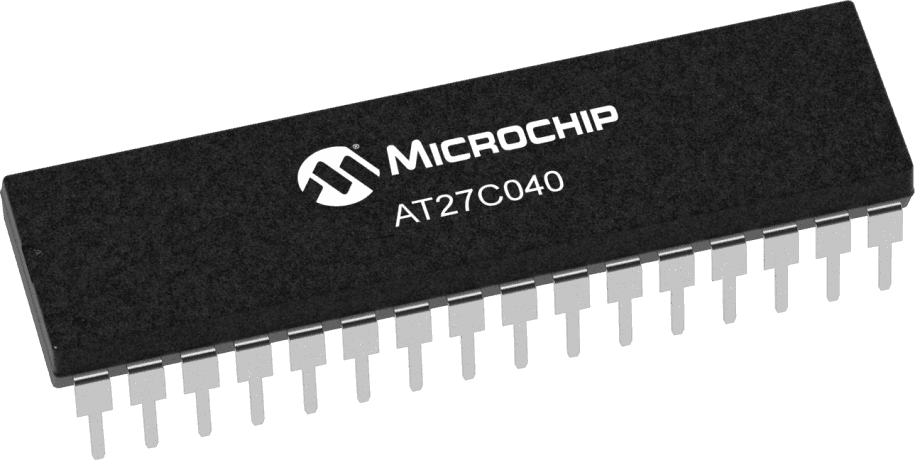

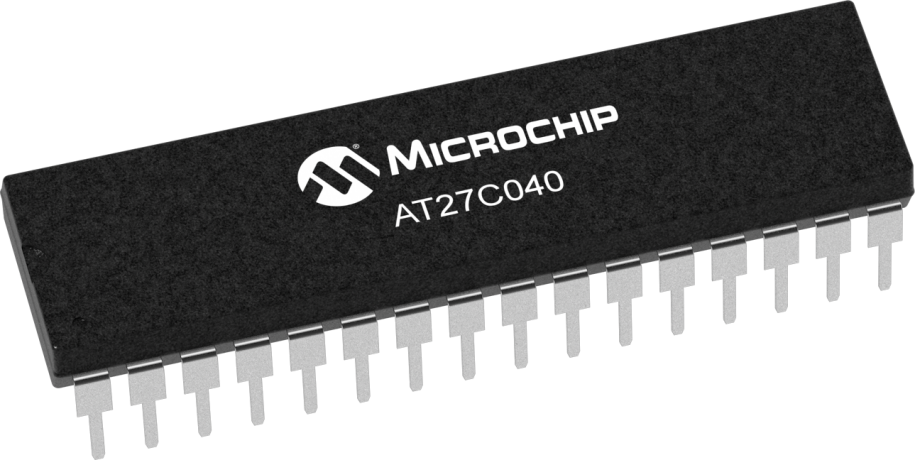

4Mb OTP EPROM memory IC with 512K x 8 organization, offering a maximum access time of 90ns. This through-hole component features a parallel interface and operates from a 4.5V to 5.5V supply voltage. Packaged in a 32-pin PDIP with tin, matte contact plating, it supports a programming voltage of 13V and is RoHS compliant.
Frequency90GHz
PackagePDIP
Current30mA
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Microchip AT27C040-90PU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Microchip AT27C040-90PU technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 90ns |
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Density | 4Mb |
| Frequency | 90GHz |
| Height | 4.44mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 42.29mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 4Mb |
| Memory Type | OTP, EPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Words | 512000 |
| Operating Supply Current | 100uA |
| Operating Supply Voltage | 5V |
| Organization | 512KX8 |
| Packaging | Rail/Tube |
| Programming Voltage | 13V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 30mA |
| Weight | 0.078125oz |
| Width | 13.97mm |
Compliance
| RoHS | Compliant |
