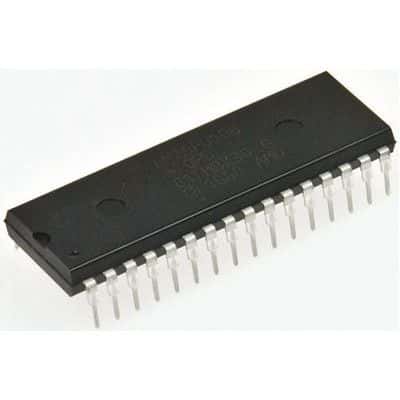

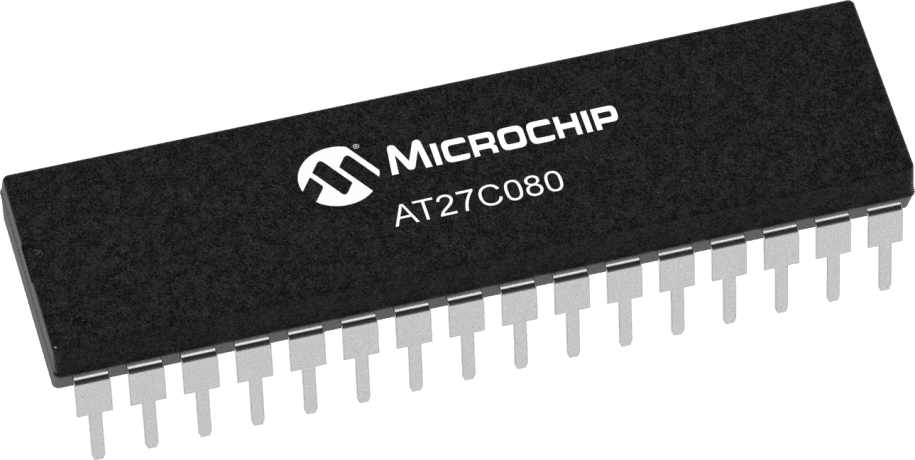

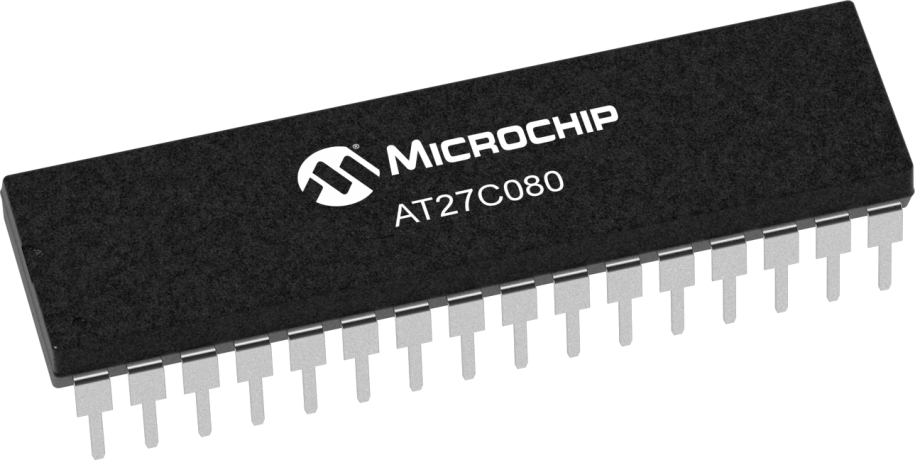

8Mb OTP EPROM memory IC, organized as 1M x 8, featuring a 90ns access time. This integrated circuit operates with a 5V supply voltage, drawing 40mA during operation, and supports a parallel interface. Packaged in a 32-pin PDIP with tin, matte contact plating, it is designed for through-hole mounting. Operating temperature range is -40°C to 85°C, with a programming voltage of 13V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip AT27C080-90PU datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 90ns |
| Access Time-Max | 90ns |
| Package/Case | PDIP |
| Contact Plating | Tin, Matte |
| Density | 8Mb |
| Frequency | 90GHz |
| Height | 4.83mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 42.29mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8Mb |
| Memory Type | OTP, EPROM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Current | 40mA |
| Operating Supply Voltage | 5V |
| Organization | 1MX8 |
| Packaging | Rail/Tube |
| Programming Voltage | 13V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 40mA |
| Weight | 0.078125oz |
| Width | 13.97mm |
| RoHS | Compliant |
