8-bit microcontroller featuring a 48MHz PIC core architecture. This FLASH memory device offers 128KB of program memory and 3904B of RAM. It supports multiple interfaces including I2C, SPI, and UART, with 68 programmable I/Os. Operating from 2V to 3.9V, this surface mount TQFP package component includes 15 ADC channels and 5 timers.
Frequency48MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip PIC18F87J11-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
PIC
Data Bus Width
8b
Frequency
48MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, EBI/EMI
Lead Free
Lead Free
Length
12mm
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
3.9V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
15
Number of Bits
8
Number of I/Os
68
Number of I2C Channels
2
Number of Programmable I/O
68
Number of PWM Channels
2
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
3904B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip PIC18F87J11-I/PT Datasheet
Download the complete datasheet for Microchip PIC18F87J11-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

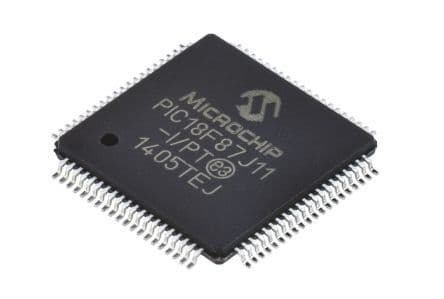

Product Images
