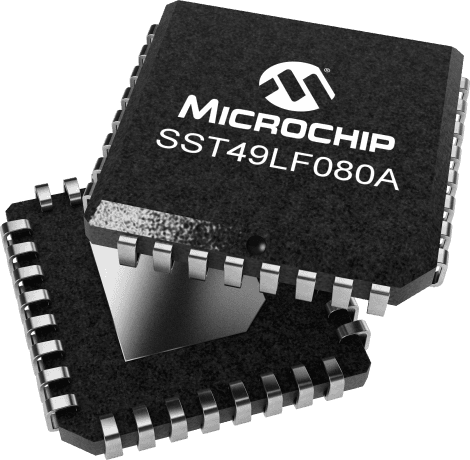

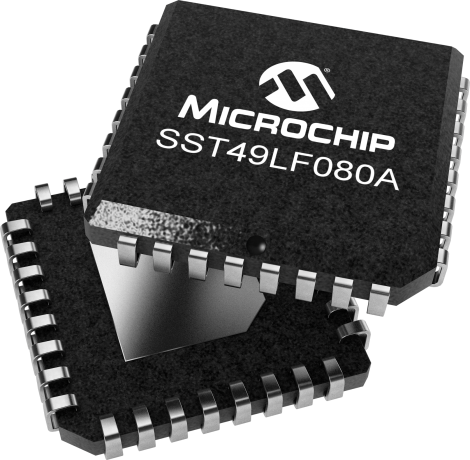

8Mb Flash Memory IC with 120ns access time, featuring an 8-bit data bus and 11-bit address bus. Operates at 33MHz with a 3V to 3.6V supply voltage range and 12mA max supply current. Supports SPI, Parallel, and Serial interfaces, with asynchronous and synchronous operation. Packaged in a 32-pin PLCC, this RoHS compliant component is rated for commercial temperature grades (0°C to 85°C).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip SST49LF080A-33-4C-NHE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 120ns |
| Access Time-Max | 120ns |
| Address Bus Width | 11b |
| Package/Case | PLCC |
| Data Bus Width | 8b |
| Density | 8Mb |
| Frequency | 33MHz |
| Height | 2.84mm |
| Interface | SPI, Parallel, Serial |
| Lead Free | Lead Free |
| Length | 11.51mm |
| Max Frequency | 33MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 12mA |
| Max Supply Voltage | 3.6V |
| Memory Size | 8Mb |
| Memory Type | NAND, , Non-Volatile, FLASH |
| Min Supply Voltage | 3V |
| Number of Words | 1024000 |
| Operating Supply Voltage | 3.3V |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SST49 |
| Supply Current | 12mA |
| Supply Voltage-Nom | 3.6V |
| Sync/Async | Asynchronous, Synchronous |
| Temperature Grade | COMMERCIAL |
| Width | 14.05mm |
| Word Size | 8b |
| RoHS | Compliant |
Download the complete datasheet for Microchip SST49LF080A-33-4C-NHE to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the Microchip SST49LF080A-33-4C-NHE
Qualification plan for CuPdAu bond wire material for Microchip SST49LF008A and SST49LF080A devices in 32L PLCC packages at the MMT assembly site.
