General purpose surface mount inductor with 12nH inductance and 5% tolerance. Features an alumina core, 500mA rated current, and 140mΩ DC resistance. Operates from -55°C to 125°C with a self-resonant frequency of 5.5GHz. Packaged in a 0402 (1005 metric) case, this unshielded chip inductor is RoHS compliant and lead-free.
Package0402
Current Rating500mA
MountingSurface Mount
Inductance12nH
Quick Jump:
Technical Specifications
Murata LQW15AN12NJ00D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Air, Non-Magnetic, Ferrite
Current Rating
500mA
DC Current
500mA
DC Resistance (DCR)
140mR
Depth
0.7mm
Height
0.02inch
Inductance
12nH
Lead Free
Lead Free
Length
1.1mm
Max DC Current
500mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
30
Radiation Hardening
No
Rated Current-Max
500mA
RMS Current (Irms)
500mA
RoHS Compliant
Yes
Self Resonant Frequency
5.5GHz
Series
LQW15A_00
Series Resistance
140mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
5%
Weight
2.8E-05oz
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Murata LQW15AN12NJ00D Datasheet
Download the complete datasheet for Murata LQW15AN12NJ00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

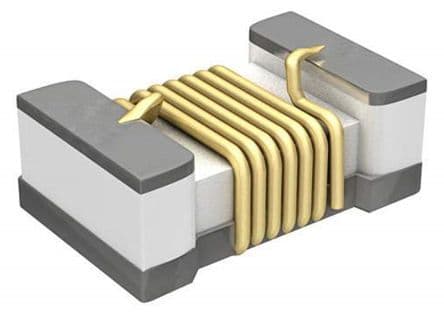

Product Images
