Technical Specifications
NXP 1N4148 technical specifications.
General
| Capacitance | 4pF |
| Package/Case | SOD |
| Current | 4A |
| Current Rating | 200mA |
| Element Configuration | Single |
| Forward Current | 200mA |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 4A |
| Max Operating Temperature | 200°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Output Current | 200mA |
| Packaging | Ammo Pack |
| Polarity | Standard |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 4ns |
| RoHS Compliant | Yes |
| Voltage | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
| ECCN | EAR99 |
| Htsus | 8541.10.0070 |
Datasheet
NXP 1N4148 Datasheet
Download the complete datasheet for NXP 1N4148 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

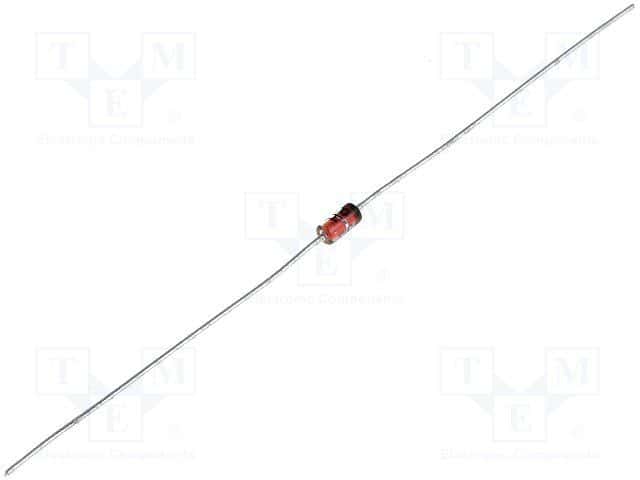

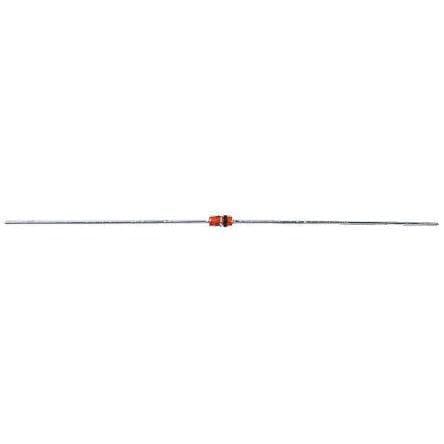

Product Images
