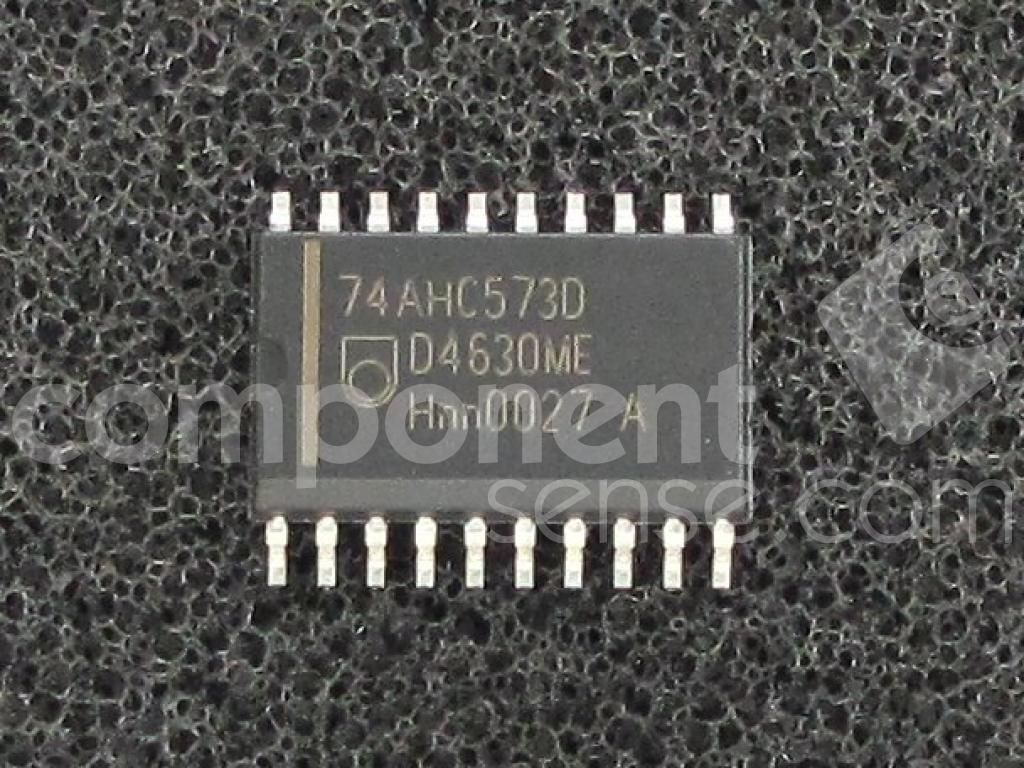

The 74AHC573D is an 8-bit non-inverting buffer with 8 inputs and 8 outputs. It operates within a temperature range of -40°C to 125°C and is RoHS compliant. The device can supply up to 8mA of current at its high-level output. It is available in a SO package and is lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP 74AHC573D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP 74AHC573D technical specifications.
| Package/Case | SO |
| High Level Output Current | -8mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Number of Circuits | 8 |
| Number of Input Lines | 8 |
| Number of Output Lines | 8 |
| Package Quantity | 38 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 4.2ns |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for NXP 74AHC573D to view detailed technical specifications.
