Technical Specifications
NXP 74AVC16836ADGV,112 technical specifications.
General
| Package/Case | TFSOP |
| Contact Plating | Gold |
| Direction | Unidirectional |
| High Level Output Current | -12mA |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 12mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Bits per Element | 20 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Type | 3-STATE |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 2.3ns |
| Quiescent Current | 40uA |
| RoHS Compliant | Yes |
| Series | 74AVC |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74AVC16836ADGV,112 Datasheet
Download the complete datasheet for NXP 74AVC16836ADGV,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

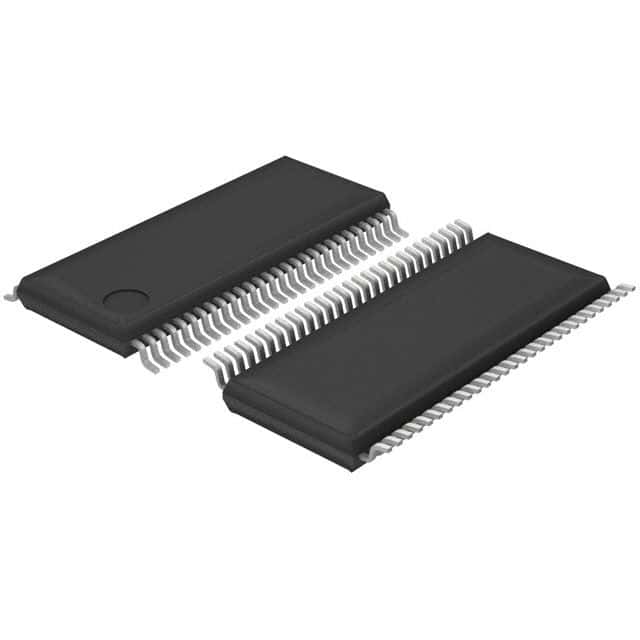

Product Images
