Positive edge-triggered D-type flip-flop IC, featuring 8 bits and a single element. Operates with a supply voltage range of 2V to 6V, typically 5V, and supports a maximum frequency of 24MHz. Offers a propagation delay of 225ns with non-inverting true outputs. This surface mount component is housed in a 20-pin SO package, is RoHS compliant, and operates within a temperature range of -40°C to 125°C.
Frequency24MHz
PackageSO
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP 74HC273D technical specifications.
General
| Package/Case | SO |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 24MHz |
| High Level Output Current | -5.2mA |
| Lead Free | Lead Free |
| Logic Function | D-Type |
| Low Level Output Current | 5.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 5.2mA |
| Packaging | Bulk |
| Polarity | Non-Inverting |
| Propagation Delay | 225ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Technology | CMOS |
| Voltage | 5V |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74HC273D Datasheet
Download the complete datasheet for NXP 74HC273D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

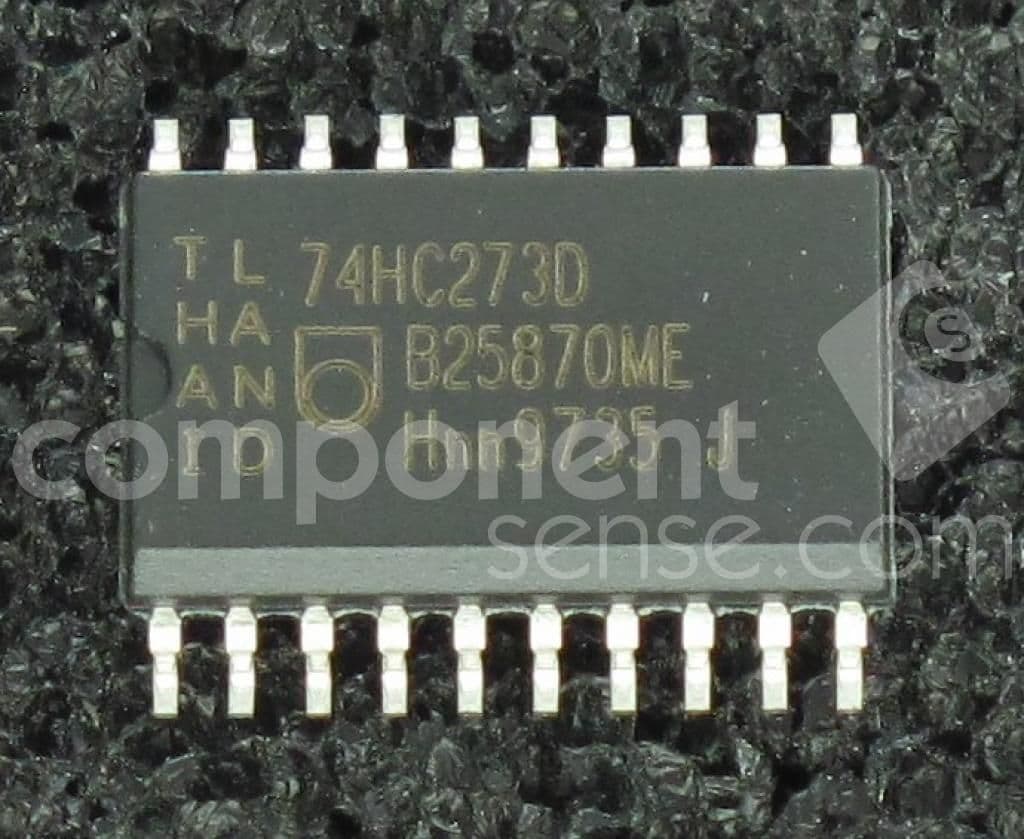

Product Images
