Quad 3-state buffer/line driver IC, featuring four independent buffer elements. Operates with a supply voltage range of 4.5V to 5.5V, typically 5V. Offers a high level output current of -6mA and a low level output current of 6mA. This surface mount component, packaged in SSOP, boasts a propagation delay of 24ns and a turn-on delay time of 42ns. Designed with CMOS technology, it functions as a non-inverting buffer with a maximum operating temperature of 125°C.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
NXP 74HCT126DB,112 technical specifications.
General
| Package/Case | SSOP |
| High Level Output Current | -6mA |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 6mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits per Element | 1 |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Number of Input Lines | 4 |
| Number of Inputs | 4 |
| Number of Output Lines | 4 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 5V |
| Output Type | 3-STATE |
| Package Quantity | 78 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 24ns |
| Quiescent Current | 8uA |
| RoHS Compliant | Yes |
| Series | 74HCT |
| Technology | CMOS |
| Turn-On Delay Time | 42ns |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74HCT126DB,112 Datasheet
Download the complete datasheet for NXP 74HCT126DB,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

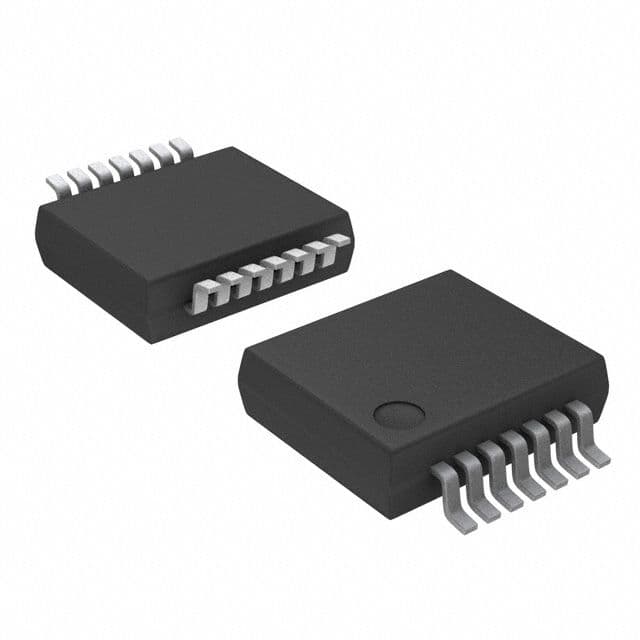

Product Images
