NXP
74LVC573ABXX
74LVC573A - Octal D-type transparent latch with 5 V tolerant inputs/outputs; 3-state QFN 20-Pin
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
NXP 74LVC573ABXX technical specifications.
General
High Level Output Current
24mA
Independent Circuits
1
Logic Function
D-Type, Latch
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.2V
Mount
Surface Mount
Number of Bits
8
Number of Elements
1
Output Type
3-STATE
Package Quantity
4000
Packaging
Tape and Reel
Polarity
Non-Inverting
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
1.5ns
Compliance
RoHS
Compliant
Datasheet
NXP 74LVC573ABXX Datasheet
Download the complete datasheet for NXP 74LVC573ABXX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

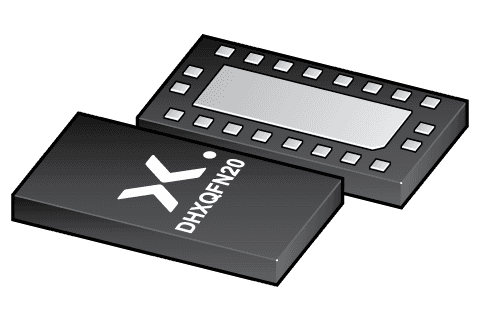

Product Images
