Technical Specifications
NXP 74LVTH32245EC518 technical specifications.
General
| Package/Case | LFBGA |
| Contact Plating | Tin, Lead |
| Direction | Bidirectional |
| High Level Output Current | -32mA |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Voltage | 3.3V |
| Output Type | 3-STATE |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 1.9ns |
| Quiescent Current | 12mA |
| Series | 74LVTH |
Compliance
| RoHS | Compliant |
Datasheet
NXP 74LVTH32245EC518 Datasheet
Download the complete datasheet for NXP 74LVTH32245EC518 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

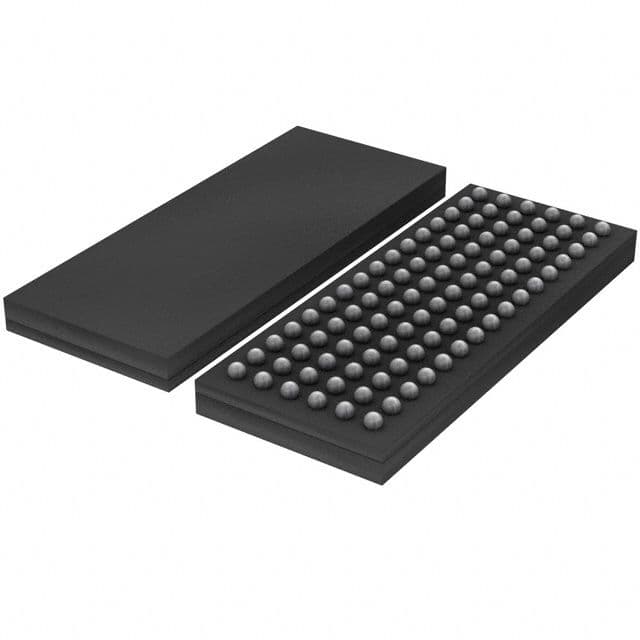

Product Images
