Voltage30V
Capacitance10pF
MountingSurface Mount
Quick Jump:
Technical Specifications

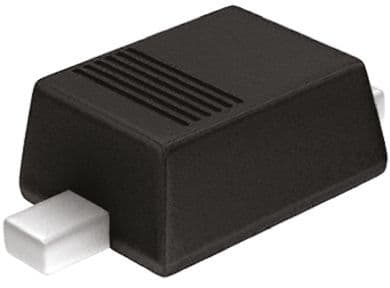

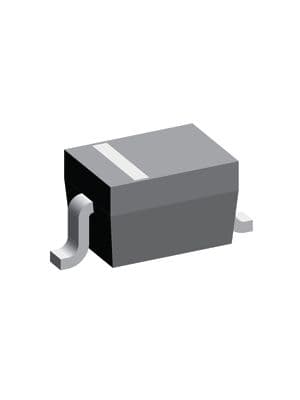

NXP BAT54J technical specifications.
General
Capacitance
10pF
Forward Current
200mA
Height
0.8mm
Length
1.8mm
Max Forward Surge Current (Ifsm)
600mA
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
2uA
Mount
Surface Mount
Reverse Voltage
30V
RoHS Compliant
Yes
Voltage
30V
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
NXP BAT54J Datasheet
Download the complete datasheet for NXP BAT54J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
