Technical Specifications
NXP BAT74 technical specifications.
General
Forward Current
200mA
Height
1mm
Length
3mm
Max Forward Surge Current (Ifsm)
600mA
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
2uA
Mount
Surface Mount
Reverse Recovery Time
5ns
RoHS Compliant
Yes
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
NXP BAT74 Datasheet
Download the complete datasheet for NXP BAT74 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

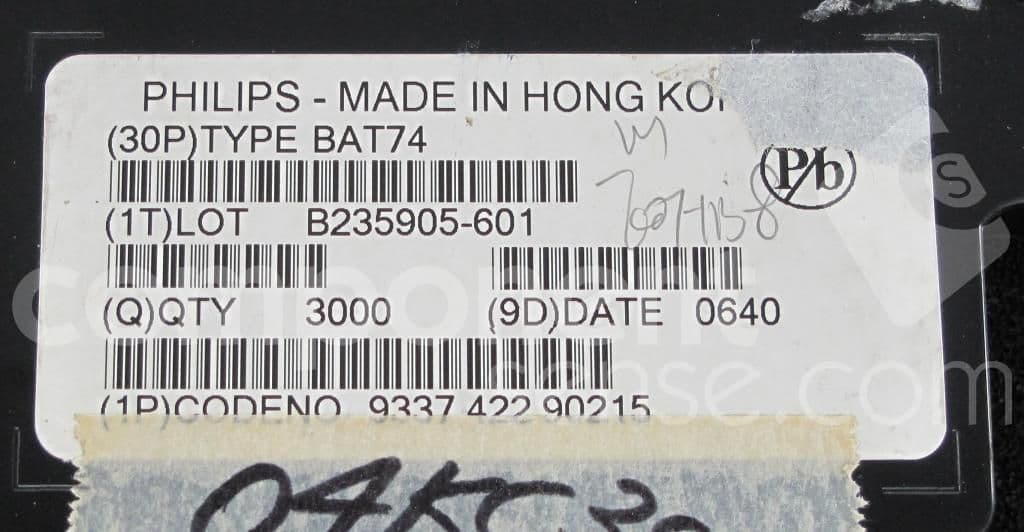

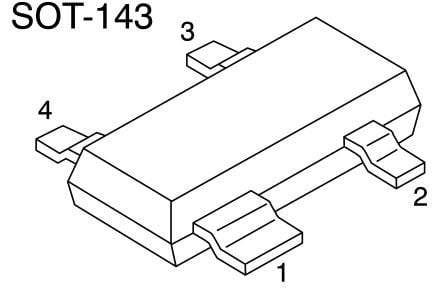

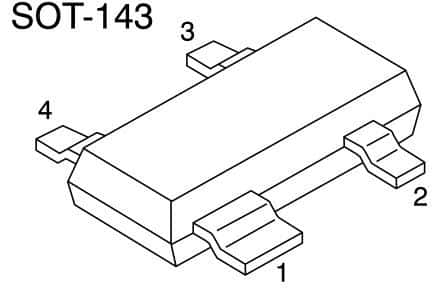

Product Images
