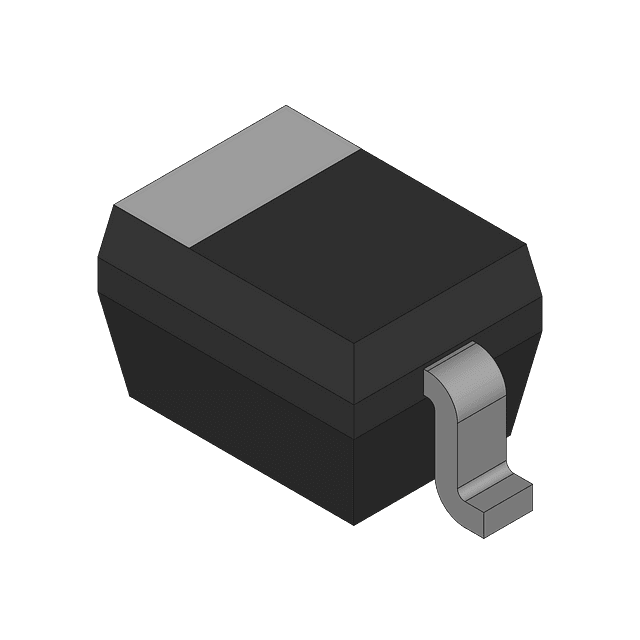

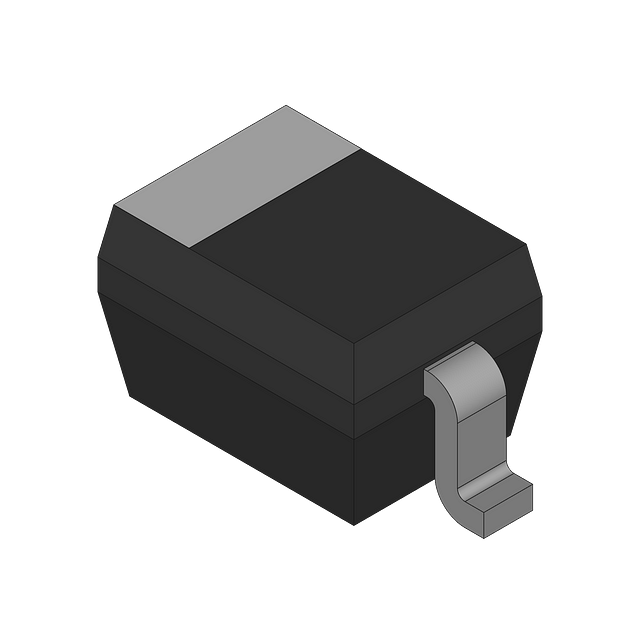

This diode features a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It has a maximum repetitive reverse voltage of 30V and a forward current of 20mA. The diode is surface mount with a height of 1.05mm, length of 1.8mm, and width of 1.35mm. It is lead free and RoHS compliant, with tin plated contacts.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP BB148,115 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 36.8pF |
| Contact Plating | Tin |
| Diode Capacitance-Max | 41.8pF |
| Forward Current | 20mA |
| Height | 1.05mm |
| Lead Free | Lead Free |
| Length | 1.8mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 30V |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage (DC) | 30V |
| RoHS Compliant | Yes |
| Width | 1.35mm |
| RoHS | Compliant |
