Single RF amplifier IC operating up to 3.6GHz, featuring 25.1dB gain at 2.15GHz. This surface mount device offers a 3.8dB noise figure and 5dBm P1dB, powered by a 3V to 3.6V supply. It operates with a typical 20mA current and dissipates up to 200mW, housed in a 6-pin TSSOP package.
Frequency3.6GHz
PackageTSSOP
Current22.2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP BGA2817,115 technical specifications.
General
| Package/Case | TSSOP |
| Contact Plating | Tin |
| Gain | 25.1dB |
| Lead Free | Lead Free |
| Max Frequency | 3.6GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 200mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Noise Figure | 3.8dB |
| Number of Channels | 1 |
| Operating Frequency | 2.2 GHz |
| Operating Supply Current | 20mA |
| Operating Supply Voltage | 3.3V |
| P1dB | 5dBm |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 22.2mA |
| Test Frequency | 2.15GHz |
Compliance
| RoHS | Compliant |
Datasheet
NXP BGA2817,115 Datasheet
Download the complete datasheet for NXP BGA2817,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

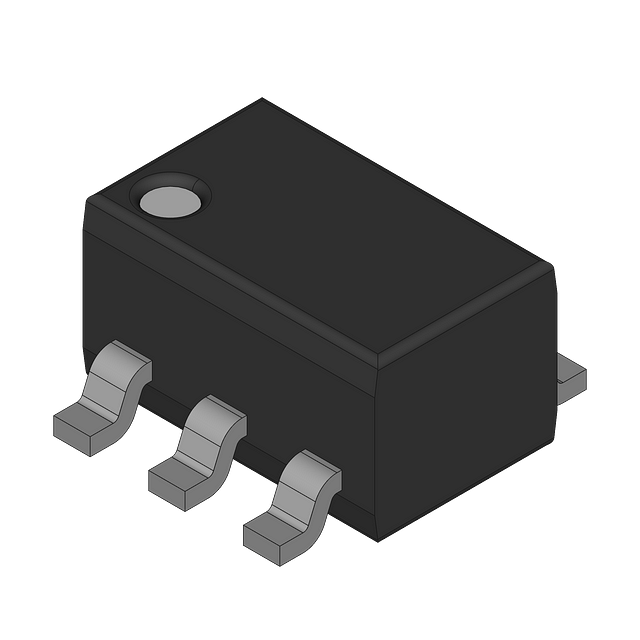

Product Images
