Technical Specifications
NXP BGA2874,115 technical specifications.
General
| Gain | 31dB |
| Max Frequency | 750MHz |
| Max Power Dissipation | 200mW |
| Max Supply Voltage | 2.7V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Noise Figure | 3.1dB |
| Operating Supply Current | 16.5mA |
| Operating Supply Voltage | 2.5V |
| P1dB | 5dBm |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Test Frequency | 500MHz |
Compliance
| RoHS | Compliant |
Datasheet
NXP BGA2874,115 Datasheet
Download the complete datasheet for NXP BGA2874,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

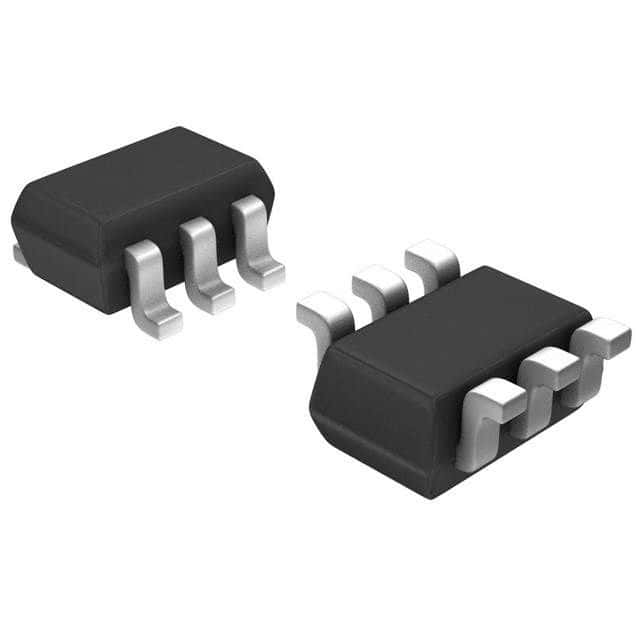

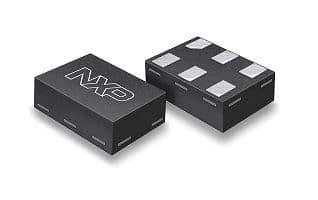

Product Images
