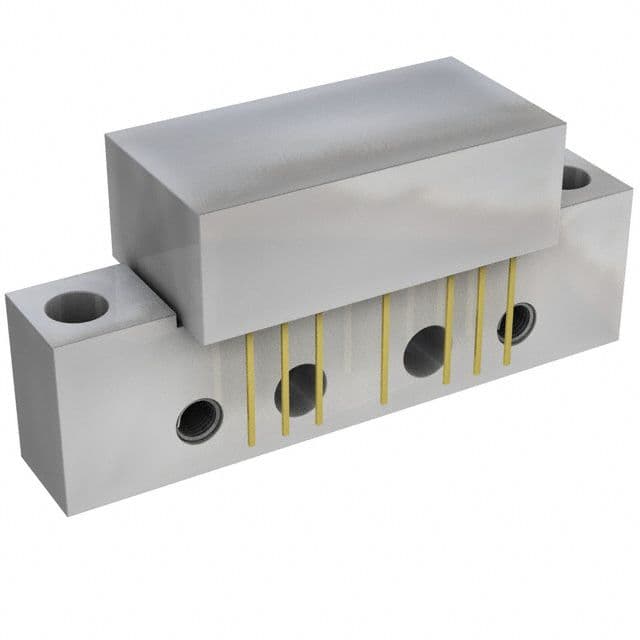

The BGD814,112 is a general purpose amplifier from NXP, packaged in a SOT-115 case and featuring gold contact plating. It operates at a maximum frequency of 870MHz and is powered by a 24V supply, drawing a maximum operating supply current of 395mA. The amplifier is available in bulk packaging, with 25 units per package, and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP BGD814,112 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | SOT-115 |
| Contact Plating | Gold |
| Height | 20.8mm |
| Length | 44.75mm |
| Max Frequency | 870MHz |
| Mount | Screw |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Frequency | 870 MHz |
| Operating Supply Current | 395mA |
| Operating Supply Voltage | 24V |
| Package Quantity | 25 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Supply Current | 410mA |
| Test Frequency | 870MHz |
| Width | 13.75mm |
| RoHS | Compliant |
