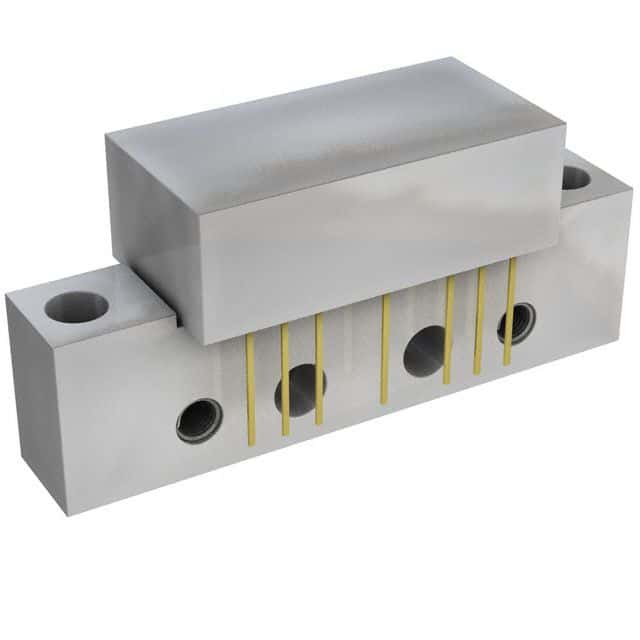

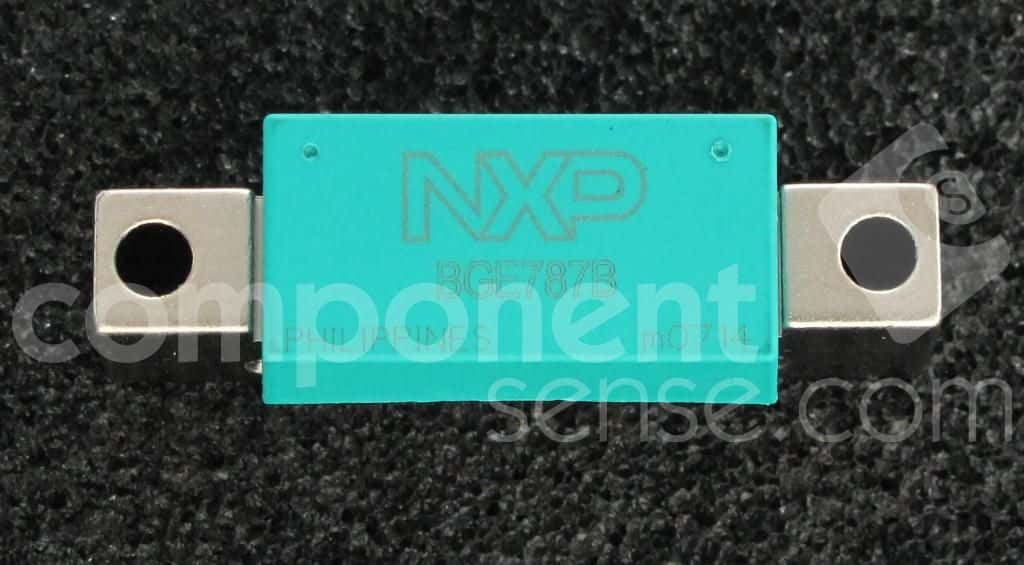

The BGE787B,112 is a general purpose RF amplifier with a maximum operating frequency of 750MHz and a supply voltage of 24V. It has a supply current of 340mA and is packaged in a SOT-115 package. The amplifier is RoHS compliant and available in a bulk packaging quantity of 25 units. The device is designed for screw mounting and has a gold contact plating. It is suitable for use in a variety of applications requiring a general purpose RF amplifier.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP BGE787B,112 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | SOT-115 |
| Contact Plating | Gold |
| Height | 20.8mm |
| Length | 44.75mm |
| Max Frequency | 750MHz |
| Mount | Screw |
| Number of Channels | 1 |
| Operating Frequency | 750 MHz |
| Operating Supply Voltage | 24V |
| Package Quantity | 25 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Supply Current | 340mA |
| Test Frequency | 750MHz |
| Width | 13.75mm |
| RoHS | Compliant |
