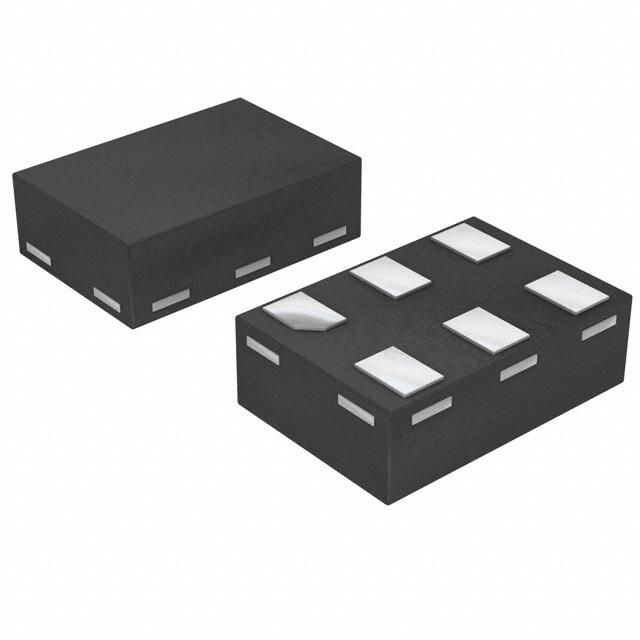

The BGU8009,115 is a surface mount RF amplifier from NXP with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum power dissipation of 55mW and a maximum supply voltage of 3.1V. The amplifier is RoHS compliant and has a noise figure of 0.65dB. It operates at a frequency of 1.61GHz and has a gain of 18dB. The BGU8009,115 is packaged in a SON package and is available in quantities of 5000 on cut tape.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP BGU8009,115 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Plating | Tin |
| Frequency | 1.61GHz |
| Gain | 18dB |
| Lead Free | Lead Free |
| Max Frequency | 1.61GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 55mW |
| Max Supply Voltage | 3.1V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Noise Figure | 0.65dB |
| Operating Supply Current | 4.4mA |
| Operating Supply Voltage | 1.8V |
| P1dB | -7dBm |
| Package Quantity | 5000 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Supply Current | 10mA |
| Test Frequency | 1.61GHz |
| RoHS | Compliant |
