Technical Specifications
NXP BGU8019X technical specifications.
General
| Frequency | 1.61GHz |
| Gain | 18.5dB |
| Lead Free | Lead Free |
| Max Frequency | 1.61GHz |
| Max Power Dissipation | 55mW |
| Max Supply Voltage | 3.1V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Noise Figure | 0.55dB |
| Operating Supply Current | 4.6mA |
| P1dB | -7dBm |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Test Frequency | 1.575GHz |
Compliance
| RoHS | Compliant |
Datasheet
NXP BGU8019X Datasheet
Download the complete datasheet for NXP BGU8019X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

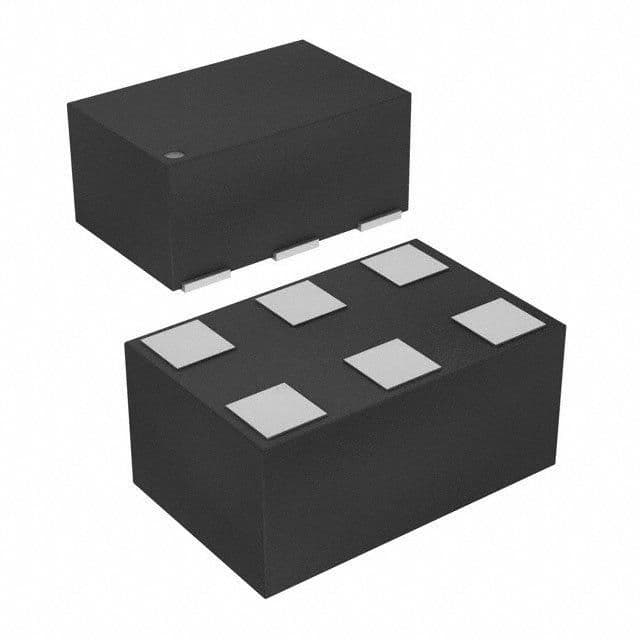

Product Images
