Technical Specifications
NXP BGU8H1X technical specifications.
General
| Contact Plating | Tin |
| Frequency | 2.7GHz |
| Gain | 13dB |
| Max Frequency | 2.69GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 55mW |
| Max Supply Voltage | 3.1V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Noise Figure | 0.9dB |
| Operating Supply Current | 5mA |
| P1dB | -3dBm |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Test Frequency | 2.3GHz |
Compliance
| RoHS | Compliant |
Datasheet
NXP BGU8H1X Datasheet
Download the complete datasheet for NXP BGU8H1X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

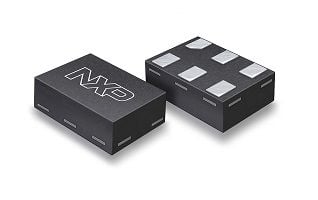

Product Images
