Technical Specifications
NXP BGU8L1X technical specifications.
General
| Contact Plating | Tin |
| Frequency | 960MHz |
| Gain | 14.5dB |
| Lead Free | Lead Free |
| Max Frequency | 960MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 55mW |
| Max Supply Voltage | 3.1V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Noise Figure | 0.7dB |
| Operating Supply Current | 4.6mA |
| P1dB | -3dBm |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Test Frequency | 880MHz |
Compliance
| RoHS | Compliant |
Datasheet
NXP BGU8L1X Datasheet
Download the complete datasheet for NXP BGU8L1X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

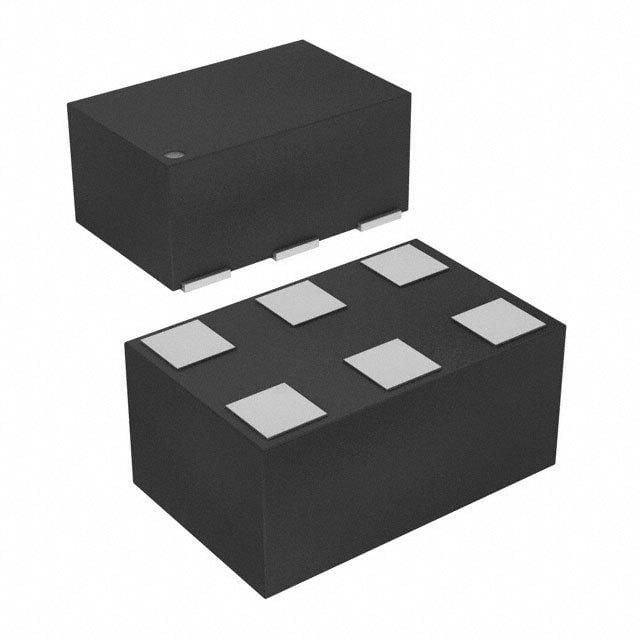

Product Images
