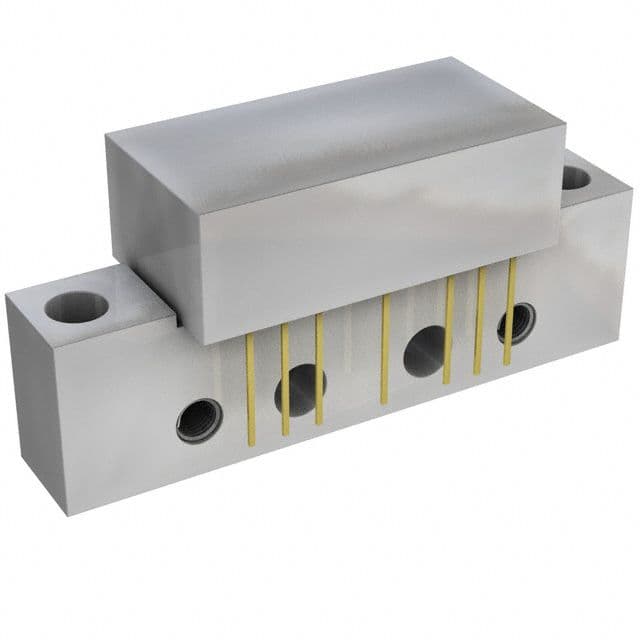

The BGY68,112 is a 75 MHz RF amplifier from NXP, packaged in a SOT-115 case and mounted via screw. It operates from a 24V supply and consumes 135mA of current. The amplifier has a gain of 30dB and a noise figure of 3.5dB. It is lead-free and RoHS compliant, available in bulk packaging with 25 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP BGY68,112 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-115 |
| Gain | 30dB |
| Lead Free | Lead Free |
| Mount | Screw |
| Noise Figure | 3.5dB |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Frequency | 75 MHz |
| Operating Supply Current | 135mA |
| Operating Supply Voltage | 24V |
| Package Quantity | 25 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Supply Current | 135mA |
| RoHS | Compliant |
Download the complete datasheet for NXP BGY68,112 to view detailed technical specifications.
