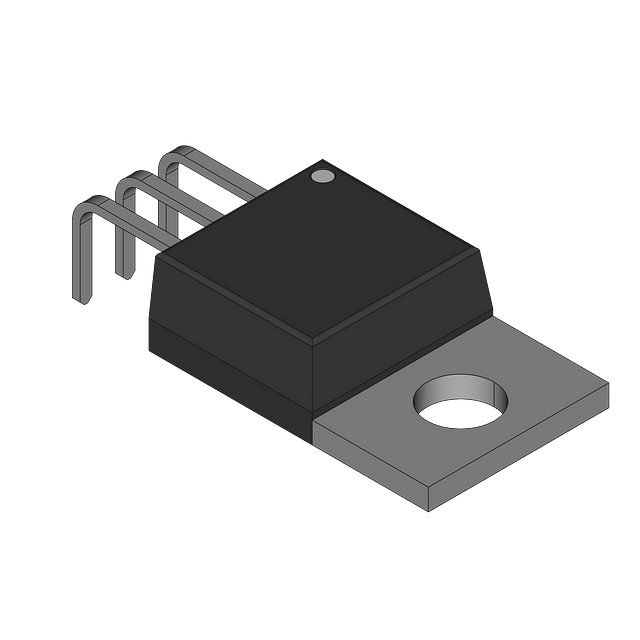

The NXP BT136-600E,127 is a TRIAC with a maximum repetitive reverse voltage of 600V and RMS current rating of 4A. It operates within a temperature range of -40°C to 125°C and is available in a TO-220AB package. This component is RoHS compliant and suitable for through hole and surface mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP BT136-600E,127 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220AB |
| Height | 9.4mm |
| Hold Current | 15mA |
| Lead Free | Lead Free |
| Length | 10.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Mount | Through Hole, Surface Mount |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 4A |
| RoHS Compliant | Yes |
| Width | 4.7mm |
| RoHS | Compliant |
Download the complete datasheet for NXP BT136-600E,127 to view detailed technical specifications.
