Technical Specifications
NXP BT138-800/DG127 technical specifications.
General
Package/Case
TO-220-3
Hold Current
30mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
800V
Mount
Through Hole
Package Quantity
1000
Packaging
Rail/Tube
RMS Current (Irms)
12A
Compliance
RoHS
Compliant
Datasheet
NXP BT138-800/DG127 Datasheet
Download the complete datasheet for NXP BT138-800/DG127 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

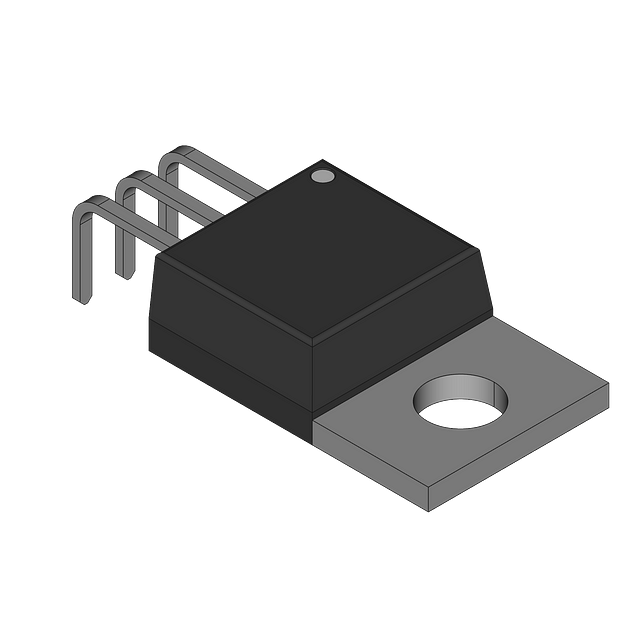

Product Images
