Quick Jump:
Technical Specifications
NXP BT139-800E technical specifications.
General
| Package/Case | TO-220-3 |
| Current Rating | 16A |
| Height | 16mm |
| Hold Current | 45mA |
| Lead Free | Lead Free |
| Length | 10.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| DC Rated Voltage | 600V |
| Width | 4.7mm |
Compliance
| RoHS | Compliant |
Datasheet
NXP BT139-800E Datasheet
Download the complete datasheet for NXP BT139-800E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

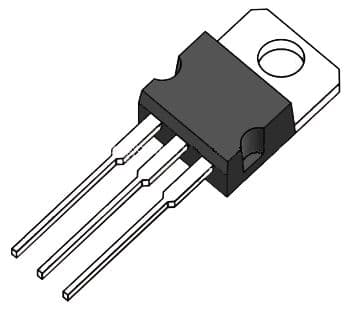

Product Images
