PackageSOT-78
Current Rating7.5A
MountingThrough Hole
Quick Jump:
Technical Specifications
NXP BT151-650R technical specifications.
General
Package/Case
SOT-78
Current Rating
7.5A
Height
9.4mm
Hold Current
20mA
Lead Free
Lead Free
Length
10.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
650V
Mount
Through Hole
Package Quantity
50
Packaging
Rail/Tube
Reach SVHC Compliant
No
RMS Current (Irms)
12A
RoHS Compliant
Yes
DC Rated Voltage
650V
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
NXP BT151-650R Datasheet
Download the complete datasheet for NXP BT151-650R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

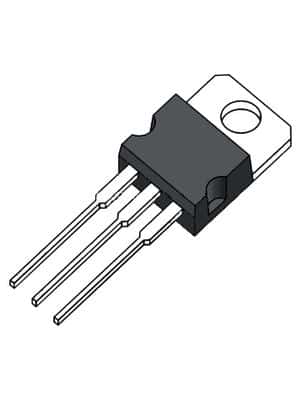

Product Images
