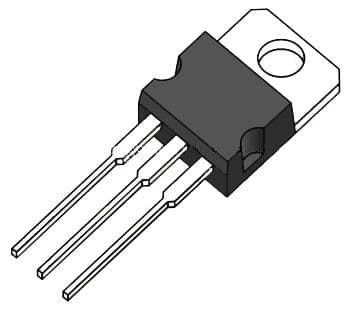

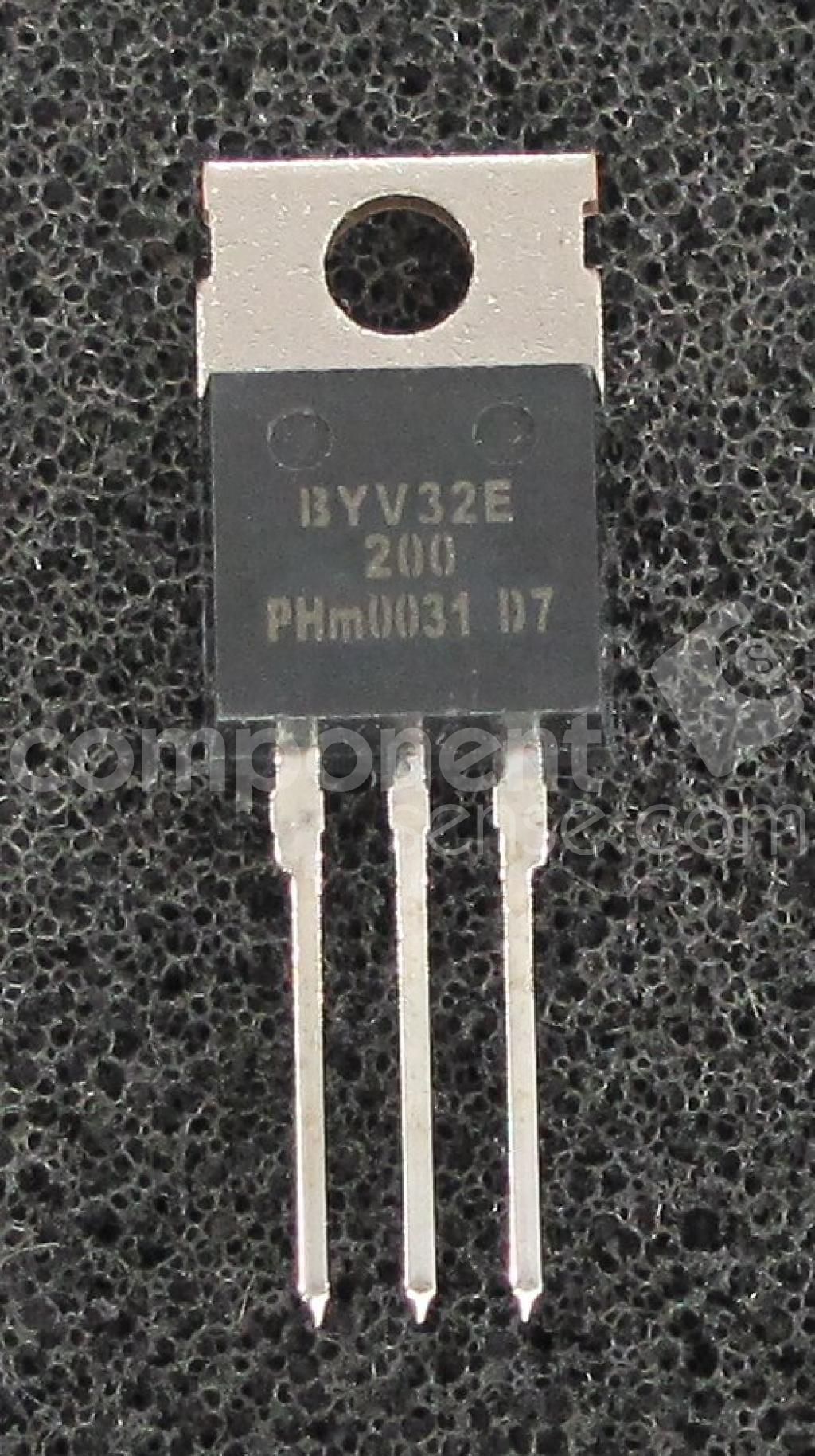

The BYV32E-200 is a 200V general purpose rectifier with a maximum forward surge current of 137A and a maximum repetitive reverse voltage of 200V. It has a maximum operating temperature of 150°C and a minimum operating temperature of -40°C. The device is packaged in a TO-220AB package and is mounted through a hole. It is RoHS compliant and lead free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP BYV32E-200 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-220AB |
| Current | 20A |
| Current Rating | 20A |
| Forward Current | 10A |
| Height | 9.4mm |
| Lead Free | Lead Free |
| Length | 10.3mm |
| Max Forward Surge Current (Ifsm) | 137A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 30uA |
| Mount | Through Hole |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 25ns |
| RoHS Compliant | Yes |
| Voltage | 200V |
| DC Rated Voltage | 200V |
| Width | 4.7mm |
| RoHS | Compliant |
