The BZX284-B9V1,115 is a Zener diode with a Zener voltage of 9.1V and a tolerance of 2%. It is available in a SOD package and is designed for surface mount applications. The diode can operate at temperatures between -65°C and 150°C and can dissipate up to 400mW of power. The BZX284-B9V1,115 is RoHS compliant and is available in quantities of 3000 per reel.
PackageSOD
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP BZX284-B9V1,115 technical specifications.
General
| Package/Case | SOD |
| Impedance | 10R |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 400mW |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Tolerance | 2% |
| Zener Voltage | 9.1V |
Compliance
| RoHS | Compliant |
Datasheet
NXP BZX284-B9V1,115 Datasheet
Download the complete datasheet for NXP BZX284-B9V1,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

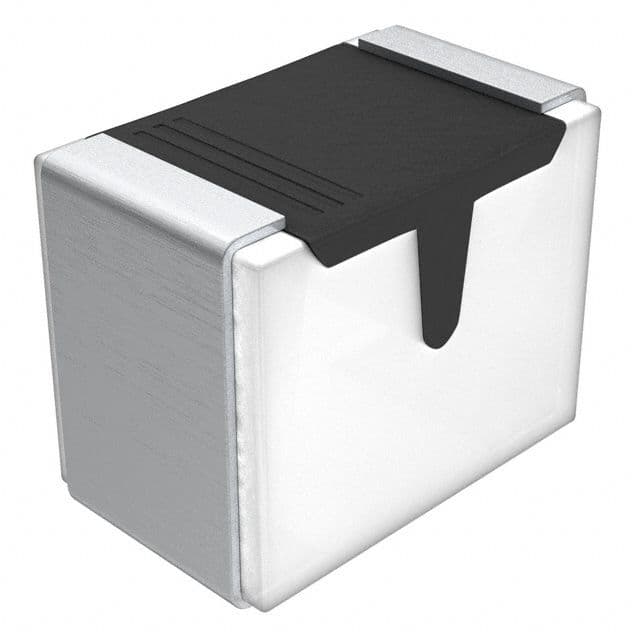

Product Images
