The BZX284-C22,115 Zener diode from NXP features a maximum operating temperature range of -65°C to 150°C and a maximum power dissipation of 400mW. It has a Zener voltage of 22V with a tolerance of 5%. The diode is packaged in a surface-mount SOD package and is RoHS compliant.
PackageSOD
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP BZX284-C22,115 technical specifications.
General
| Package/Case | SOD |
| Impedance | 25R |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 400mW |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Zener Voltage | 22V |
Compliance
| RoHS | Compliant |
Datasheet
NXP BZX284-C22,115 Datasheet
Download the complete datasheet for NXP BZX284-C22,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

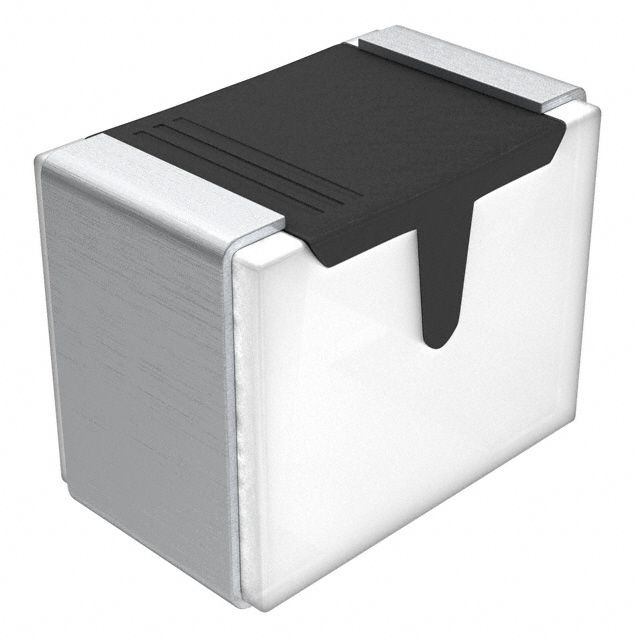

Product Images
