Technical Specifications
NXP GTL2003PW,112 technical specifications.
General
Package/Case
TSSOP
Height
0.95mm
Lead Free
Lead Free
Length
6.6mm
Logic Function
Translator
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
0V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Operating Supply Voltage
5V
Output Type
Voltage
Package Quantity
75
Packaging
Rail/Tube
Propagation Delay
1.5ns
Radiation Hardening
No
RoHS Compliant
Yes
Technology
BICMOS
Turn-On Delay Time
1.5ns
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
NXP GTL2003PW,112 Datasheet
Download the complete datasheet for NXP GTL2003PW,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

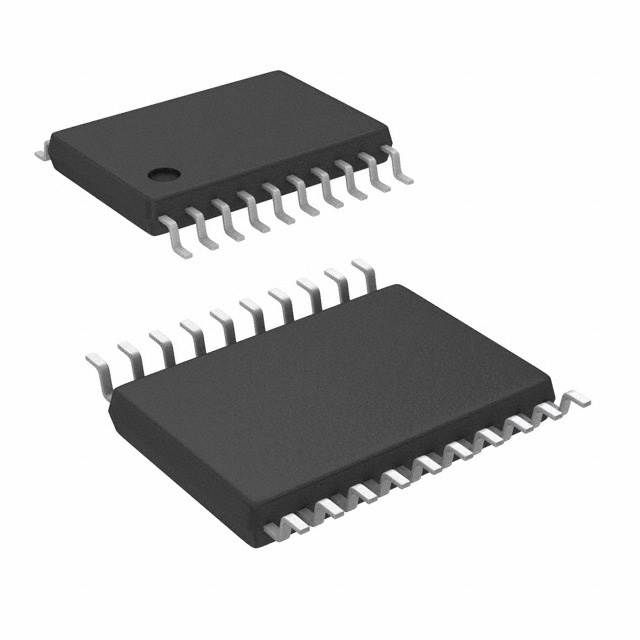

Product Images
