NXP
HEF4027BP
4000/14000/40000 SERIES, DUAL POSITIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, PDIP16, 0.300 INCH, PLASTIC, SOT38-4, DIP-16
Frequency30MHz
PackageDIP
MountingThrough Hole
PolarityNon-Inverting
Quick Jump:
Technical Specifications
NXP HEF4027BP technical specifications.
General
Package/Case
DIP
Clock Edge Trigger Type
Positive Edge
Frequency
30MHz
Height
3.2mm
Length
19.5mm
Logic Function
JK-Type
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Supply Voltage
15.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Output Current
2.4mA
Polarity
Non-Inverting
Propagation Delay
30ns
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
6.48mm
Compliance
RoHS
Compliant
Datasheet
NXP HEF4027BP Datasheet
Download the complete datasheet for NXP HEF4027BP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

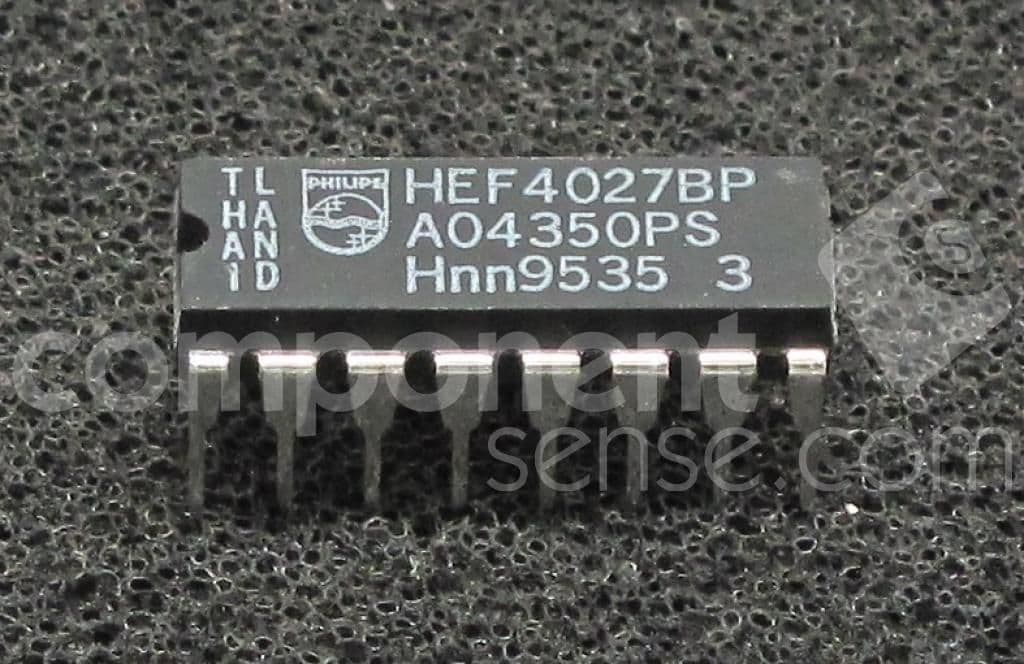

Product Images
