32-bit ARM microcontroller featuring a 77.4MHz core frequency. Offers 3 UART channels, SPI, IrDA, SSP, and EBI/EMI interfaces. Includes 32KB RAM, 3 timers/counters, and peripherals such as POR, PWM, WDT, DMA, and LCD. Operates within a 1.62V to 1.98V supply voltage range and a -40°C to 85°C temperature range. Packaged in LQFP with 64 I/Os.
Frequency77.4MHz
PackageLQFP
Quick Jump:
Technical Specifications
NXP LH79520N0Q000B1;55 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Frequency
77.4MHz
Interface
SPI, IrDA, SSP, UART, USART, EBI/EMI
Lead Free
Lead Free
Length
20mm
Max Frequency
77.4MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.98V
Memory Type
ROMless,
Min Supply Voltage
1.62V
Number of I/Os
64
Number of Programmable I/O
64
Number of Timers/Counters
3
Number of UART Channels
3
Oscillator Type
External
Package Quantity
1
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, LCD
Radiation Hardening
No
RAM Size
32KB
Reach SVHC Compliant
No
Series
BlueStreak ; LH7
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
NXP LH79520N0Q000B1;55 Datasheet
Download the complete datasheet for NXP LH79520N0Q000B1;55 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

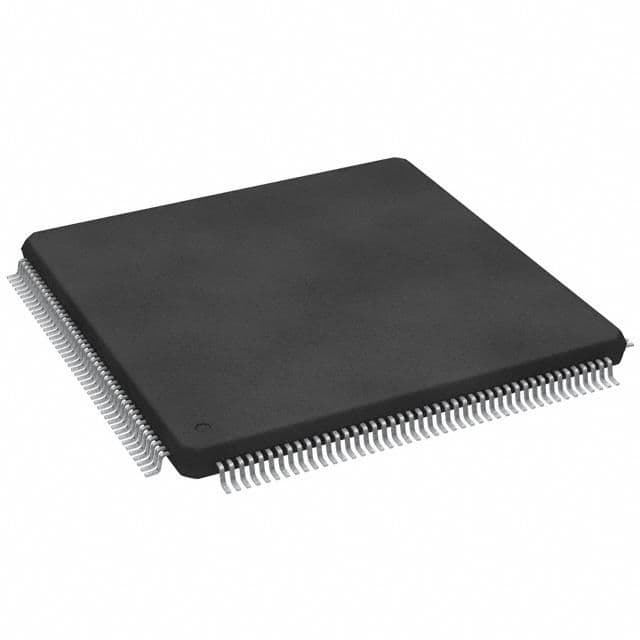

Product Images
