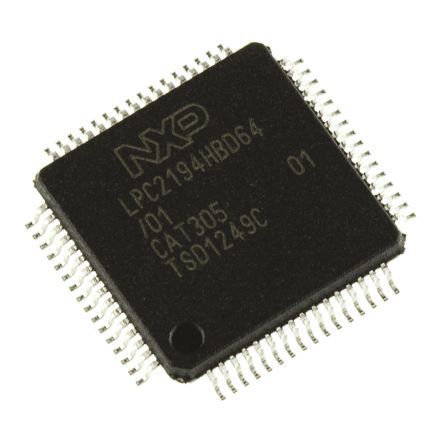

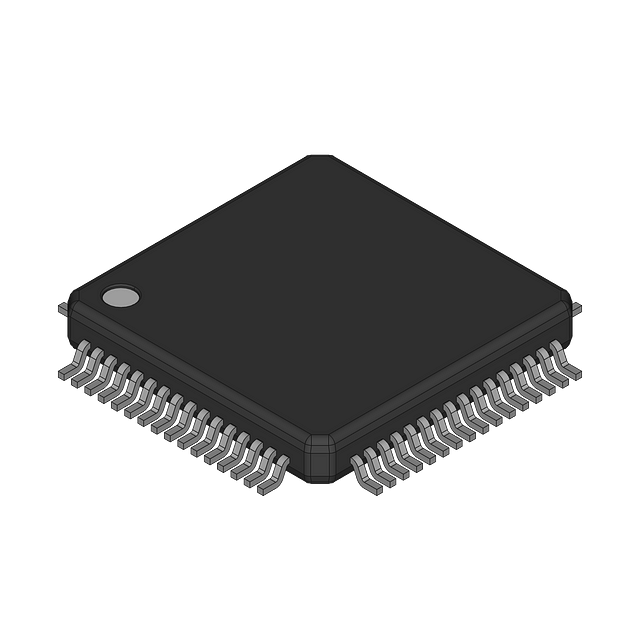

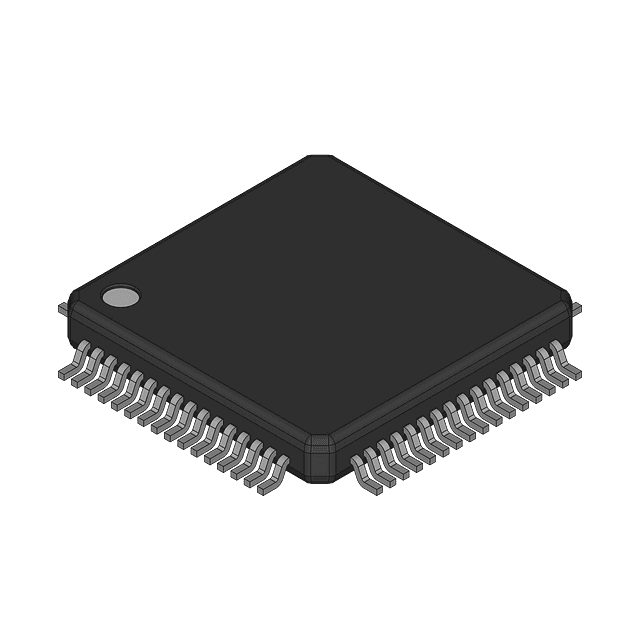

32-bit ARM7TDMI microcontroller operating at 60MHz. Features 256KB FLASH memory, 16KB RAM, and a 16-bit data bus. Includes multiple interfaces such as I2C, SPI, CAN, SSP, and UART. Offers 46 programmable I/Os, 4 ADC channels, 6 PWM channels, and 2 timers/counters. Packaged in a 64-pin LQFP (SOT-314-2) with a 1.45mm height, 10mm length, and 14.1mm width. RoHS compliant with an operating voltage range of 1.65V to 3.6V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP LPC2194HBD64/01,15 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP LPC2194HBD64/01,15 technical specifications.
| Package/Case | SOT-314-2 |
| Core Architecture | ARM |
| Data Bus Width | 16b |
| Frequency | 60MHz |
| Height | 1.45mm |
| Interface | I2C, SPI, CAN, SSP, UART, USART |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Frequency | 60MHz |
| Max Operating Temperature | 125°C |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.5W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.65V |
| Number of ADC Channels | 4 |
| Number of I/Os | 46 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 46 |
| Number of PWM Channels | 6 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 2 |
| Number of UART Channels | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 160 |
| Packaging | Tray |
| Peripherals | PWM, I2C |
| RAM Size | 16KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LPC2000 |
| Watchdog Timer | Yes |
| Width | 14.1mm |
| RoHS | Compliant |
