ARM7 microcontroller featuring 72MHz operation, 128KB FLASH memory, and 34KB SRAM. This 100-pin BGA device offers extensive connectivity including Ethernet, USB 2.0 Device, CAN, I2C, SPI, SSP, I2S, and 4 UART channels. Integrated peripherals include a 10-bit ADC with 6 channels, 4 timers/counters, DMA, and a watchdog timer. Operating voltage is 3.3V, with a temperature range of -40°C to 85°C.
Frequency72MHz
PackageSOT-926-1
Quick Jump:
Technical Specifications
NXP LPC2364FET100,518 technical specifications.
General
Package/Case
SOT-926-1
Core Architecture
ARM
Data Bus Width
16b
Frequency
72MHz
Interface
I2C, SPI, USB, CAN, Ethernet, SSP, UART, USART, I2S
Lead Free
Lead Free
Length
9mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
3V
Number of ADC Channels
6
Number of I/Os
70
Number of Programmable I/O
70
Number of Timers/Counters
4
Number of UART Channels
4
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
34KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPC2300
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
NXP LPC2364FET100,518 Datasheet
Download the complete datasheet for NXP LPC2364FET100,518 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

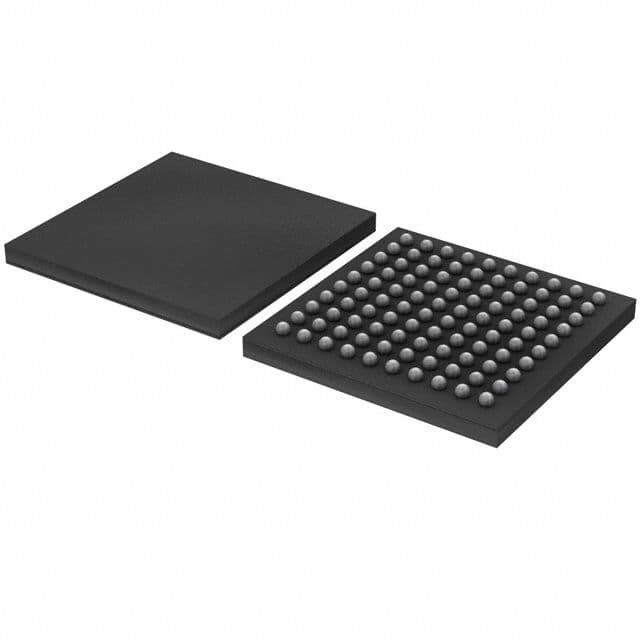

Product Images
