ARM7 microcontroller featuring 72MHz operation, 256KB FLASH memory, and 58KB SRAM. Integrated Ethernet, 6-channel 10-bit ADC, and 70 programmable I/Os. Supports I2C, SPI, UART, USB, CAN, and I2S interfaces. Packaged in a 100-pin QFP (SOT-407-1) with a 14mm x 14.1mm x 1.45mm footprint. Operates from 3V to 3.6V with a temperature range of -40°C to 85°C.
Frequency72MHz
PackageSOT-407-1
Quick Jump:
Technical Specifications
NXP LPC2365FBD100,551 technical specifications.
General
Package/Case
SOT-407-1
Core Architecture
ARM
Data Bus Width
16b
Frequency
72MHz
Height
1.45mm
Interface
I2C, SPI, Ethernet, SSP, UART, USART, USB, CAN, I2S
Lead Free
Lead Free
Length
14mm
Max Frequency
72MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Supply Voltage
3V
Number of ADC Channels
6
Number of Ethernet Channels
1
Number of I/Os
70
Number of I2C Channels
3
Number of Programmable I/O
70
Number of PWM Channels
2
Number of SPI Channels
3
Number of Timers/Counters
4
Number of UART Channels
4
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
58KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPC2300
Watchdog Timer
Yes
Width
14.1mm
Compliance
RoHS
Compliant
Datasheet
NXP LPC2365FBD100,551 Datasheet
Download the complete datasheet for NXP LPC2365FBD100,551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

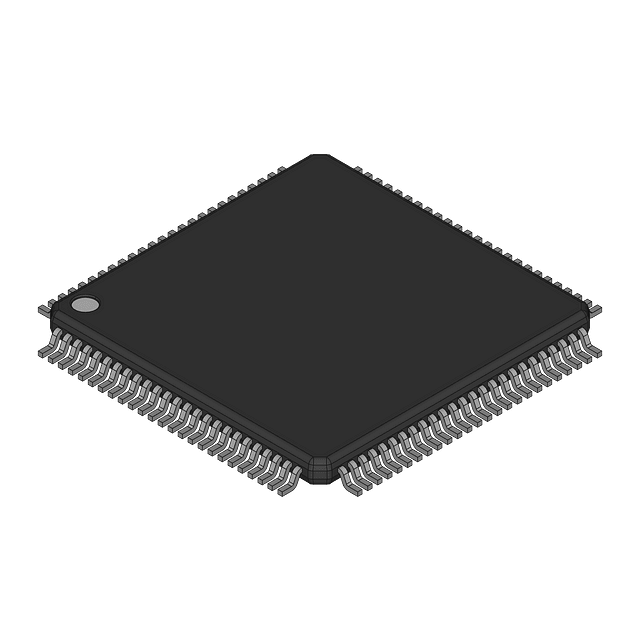

Product Images
