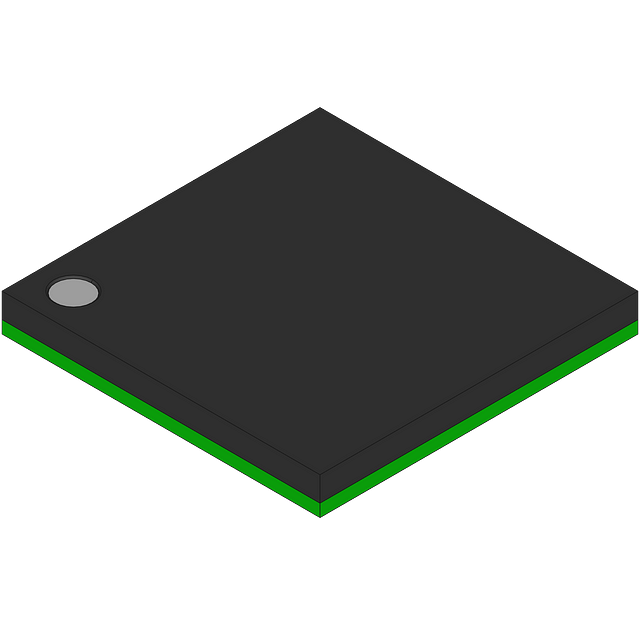

32-bit ARM Cortex-M4 microprocessor operating at up to 204MHz. Features 200KB RAM, ROMless memory architecture, and 49 programmable I/Os. Supports I2C, SPI, USB, CAN, and other interfaces. Includes peripherals like DMA, PWM, and a watchdog timer. Packaged in TFBGA, operating from 2.2V to 3.6V, with a temperature range of -40°C to 85°C.
Frequency204MHz
PackageTFBGA
Quick Jump:
Technical Specifications
NXP LPC4320FET100,551 technical specifications.
General
Package/Case
TFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
204MHz
Interface
I2C, SPI, USB, CAN, IrDA, MMC, SD, SSP, UART, USART, EBI/EMI, I2S
Lead Free
Lead Free
Max Frequency
204MHz
Max Operating Temperature
85°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Memory Size
0KB
Memory Type
ROMless,
Min Operating Temperature
-40°C
Min Supply Voltage
2.2V
Number of I/Os
49
Number of Programmable I/O
49
Number of Timers/Counters
6
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
200KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LPC43xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
NXP LPC4320FET100,551 Datasheet
Download the complete datasheet for NXP LPC4320FET100,551 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
