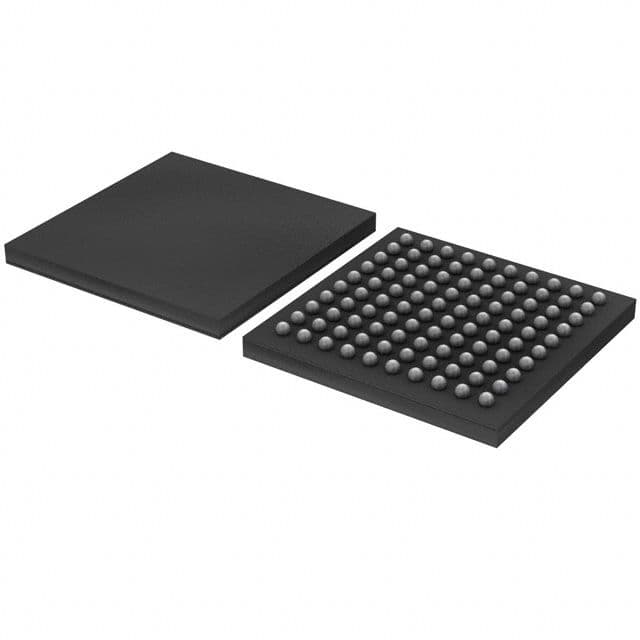

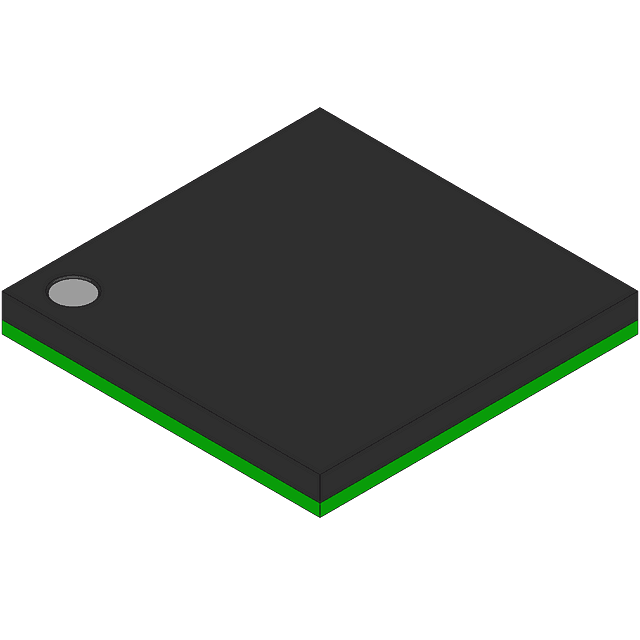

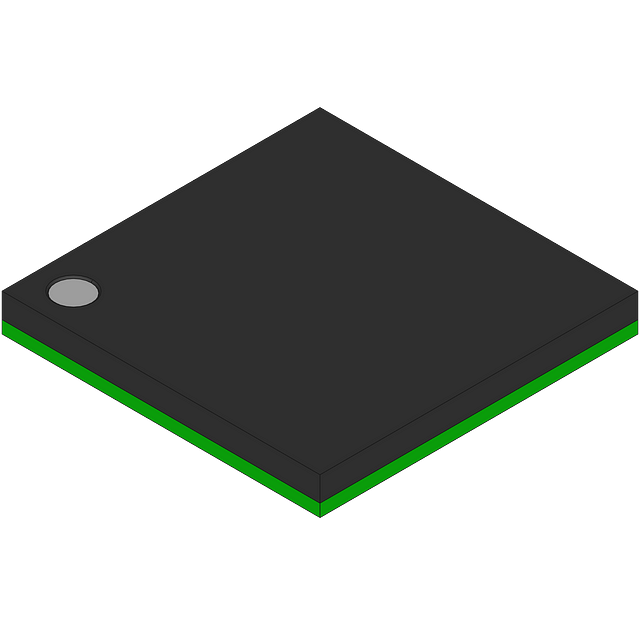

32-bit ARM Cortex-M4/M0 microcontroller featuring a 204MHz core frequency. Offers 1MB FLASH memory and 136KB SRAM, with extensive interfaces including Ethernet, dual High-speed USB, I2C, SPI, CAN, and more. This surface-mount TFBGA package operates from 2.2V to 3.6V, with a maximum power dissipation of 1.5W and an operating temperature range of -40°C to 105°C. Includes 4 ADC channels, 49 programmable I/Os, 6 timers, and peripherals like DMA and PWM.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP LPC4337JET100E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP LPC4337JET100E technical specifications.
| Package/Case | TFBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 204MHz |
| Interface | I2C, SPI, USB, CAN, Ethernet, IrDA, SD, SSP, UART, USART, EBI/EMI, MMC, I2S |
| Lead Free | Lead Free |
| Max Frequency | 204MHz |
| Max Operating Temperature | 105°C |
| Max Power Dissipation | 1.5W |
| Max Supply Voltage | 3.6V |
| Memory Size | 1MB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.2V |
| Mount | Surface Mount |
| Number of ADC Channels | 4 |
| Number of I/Os | 49 |
| Number of Programmable I/O | 49 |
| Number of Timers/Counters | 6 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | Internal |
| Package Quantity | 260 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, WDT, DMA, PWM |
| Radiation Hardening | No |
| RAM Size | 136KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LPC43xx |
| Watchdog Timer | Yes |
| RoHS | Compliant |
Download the complete datasheet for NXP LPC4337JET100E to view detailed technical specifications.
