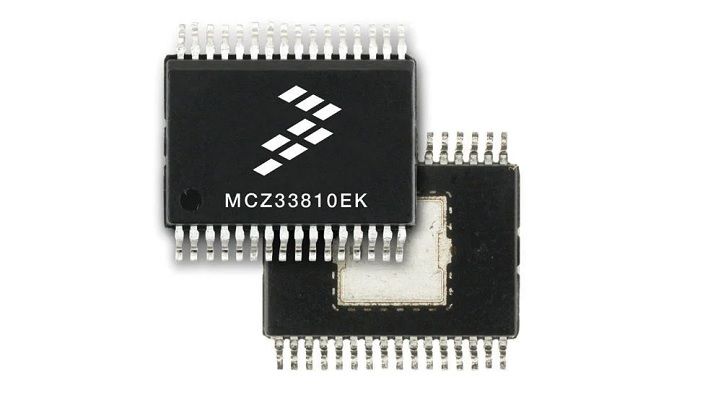

Automotive engine control output driver IC provides four integrated low-side drivers and four low-side gate predrivers. The low-side drivers support fuel injectors, solenoids, lamps and relays, while the predrivers can drive ignition IGBTs or external MOSFETs. The device operates from a 4.5 V to 36 V load supply and interfaces to a host MCU through 3.3 V or 5.0 V SPI, parallel and PWM control paths. It is supplied in a 32-terminal HSOP package with 0.65 mm pitch and includes diagnostics and fault protection for output current, overvoltage, short-circuit, thermal shutdown and undervoltage conditions.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP MC33810 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Device Function | low side switch, powertrain control, pre-driver |
| Number of Channels | 4 |
| Integrated Low-Side Drivers | 4 |
| Gate Predrivers | 4 |
| Load Supply Voltage Minimum | 4.5V |
| Load Supply Voltage Maximum | 36V |
| Logic Supply Voltage Minimum | 3V |
| Logic Supply Voltage Maximum | 5.5V |
| MCU Interface Voltage | 3.3 / 5.0V |
| Injector Driver Current Limit | 4.5 typicalA |
| Load Current | 1 typicalA |
| Standby Current | 10 typicalµA |
| Drain-to-Source On Resistance | 100000 typicalmOhm |
| Package Termination Count | 32 |
| Package Pitch | 0.65mm |
| Package Body Size | 7.5 x 11 x 2.33mm |
| Protection Features | output current, overvoltage, short-circuit, thermal shutdown, undervoltage |
| Moisture Sensitivity Level | 3 |
| Peak Package Body Temperature | 260°C |
| Pbfree | Yes |
| EU RoHS | Yes |
| Halogen Free | Yes |
| Second Level Interconnect | e3 |
Download the complete datasheet for NXP MC33810 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
These are design resources that include the NXP MC33810
Evaluation board user guide for the NXP MC33810 engine control IC, designed for driving fuel injectors and ignition coils in automotive engine management systems.
