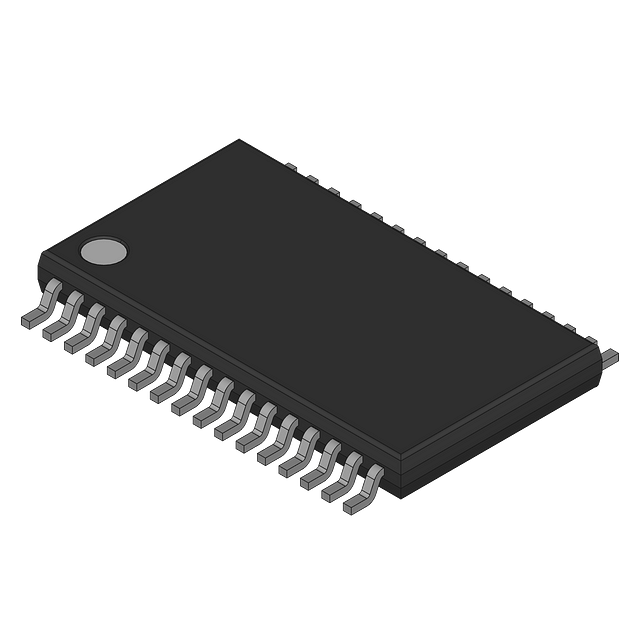

The NXP MC33931EK is a dual driver IC with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It features a surface mount package and is RoHS compliant. The device operates at a maximum supply voltage of 28V and can handle an output current of up to 5A. It is packaged in a SOIC case and is available in a rail or tube packaging format with 42 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP MC33931EK datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Halogen Free | Halogen Free |
| Interface | Parallel |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Operating Supply Voltage | 28V |
| Output Current | 5A |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Technology | CMOS |
| Weight | 0.017708oz |
| RoHS | Compliant |
