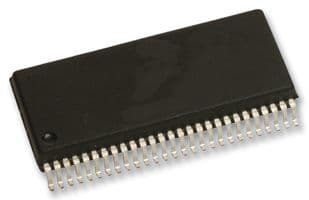

The MC33999EK is an 8-channel 24-bit SPI low-side driver from NXP. It features fault protection against over voltage and over temperature. Operating within a temperature range of -40°C to 125°C, this device has a maximum output current of 900mA and a maximum supply current of 8mA. It is available in a SOIC-54 package and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP MC33999EK datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Fault Protection | Over Voltage, Over Temperature |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 900mA |
| Max Supply Current | 8mA |
| Max Supply Voltage (DC) | 27V |
| Min Supply Voltage (DC) | 5V |
| Max Supply Voltage | 27V |
| Min Supply Voltage | 5V |
| Number of Bits | 24 |
| Number of Channels | 8 |
| Number of Outputs | 16 |
| Output Configuration | Low Side |
| Package Quantity | 26 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 4mA |
| Termination | SMD/SMT |
| RoHS | Compliant |
