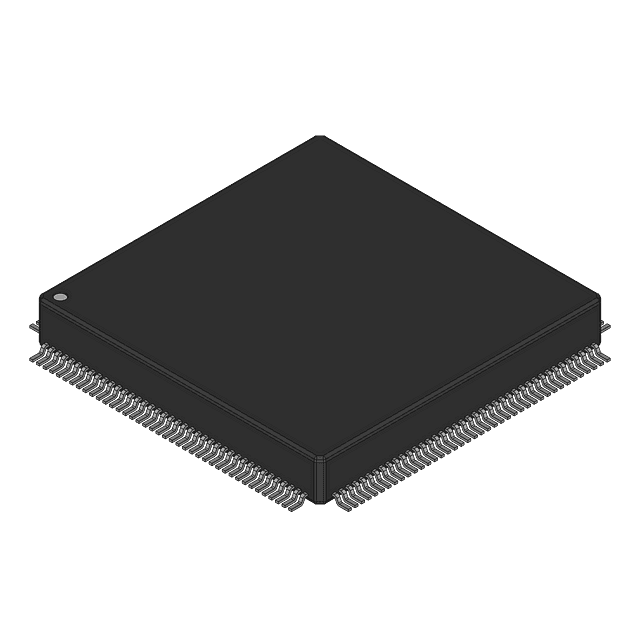

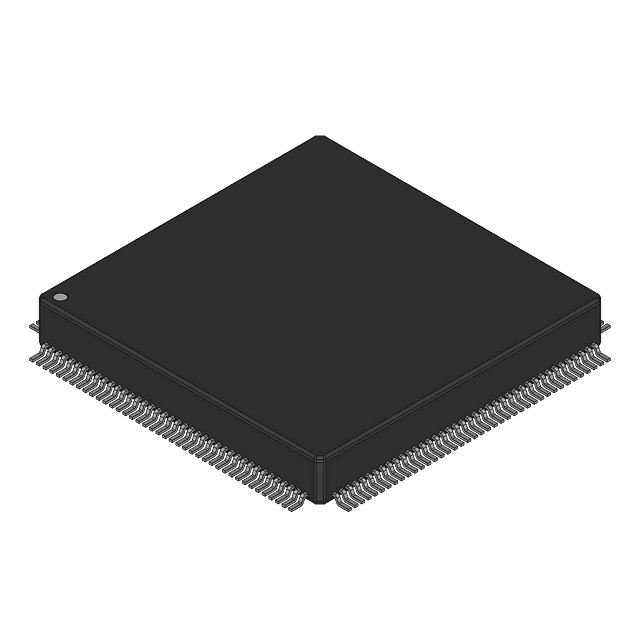

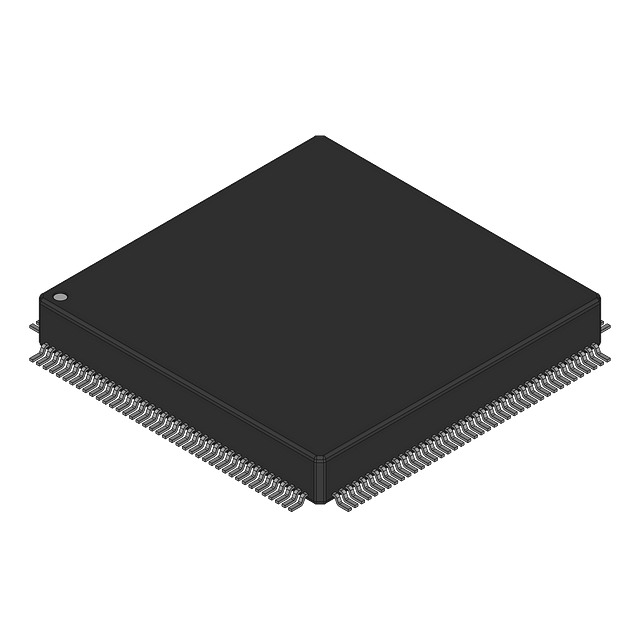

16-bit Digital Signal Processor (DSP) featuring 128KB FLASH memory and 8KB RAM. Operates at a maximum frequency of 40MHz with a 3.3V supply voltage, supporting a range of 3V to 3.6V. Includes SPI, SCI, and EBI/EMI interfaces, 76 programmable I/Os, 6 PWM channels, and 2 timers/counters. Packaged in LQFP for surface mounting, with a temperature range of -40°C to 105°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP MC56F8147VPYE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Data Bus Width | 16b |
| Density | 128KB |
| Frequency | 40MHz |
| Halogen Free | Halogen Free |
| Interface | SPI, SCI, EBI/EMI |
| Lead Free | Lead Free |
| Max Frequency | 40MHz |
| Max Operating Temperature | 105°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 128KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of I/Os | 76 |
| Number of Programmable I/O | 76 |
| Number of PWM Channels | 6 |
| Number of Timers/Counters | 2 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | External |
| Package Quantity | 40 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 8KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | 56F8xxx |
| Termination | SMD/SMT |
| Weight | 0.064671oz |
| RoHS | Not CompliantNo |
