16-bit Digital Signal Processor (DSP) with 512KB FLASH memory and 4KB RAM. Features a 40MHz core clock speed, 62 programmable I/Os, and supports SPI, SCI, and EBI/EMI interfaces. Operates from a 3V to 3.6V supply voltage, with a maximum operating temperature of 105°C. This surface mount component is housed in an LQFP package and includes 8 timers/counters and peripherals like POR, PWM, and WDT.
Frequency40MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MC56F8166VFVE technical specifications.
General
| Package/Case | LQFP |
| Data Bus Width | 16b |
| Frequency | 40MHz |
| Halogen Free | Halogen Free |
| Interface | SPI, SCI, EBI/EMI |
| Lead Free | Lead Free |
| Max Frequency | 40MHz |
| Max Operating Temperature | 105°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 512KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of I/Os | 62 |
| Number of Programmable I/O | 62 |
| Number of Timers/Counters | 8 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | External |
| Package Quantity | 60 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT |
| RAM Size | 4KB |
| RoHS Compliant | No |
| Series | 56F8xxx |
| Weight | 0.04653oz |
Compliance
| RoHS | Not Compliant |
Datasheet
NXP MC56F8166VFVE Datasheet
Download the complete datasheet for NXP MC56F8166VFVE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

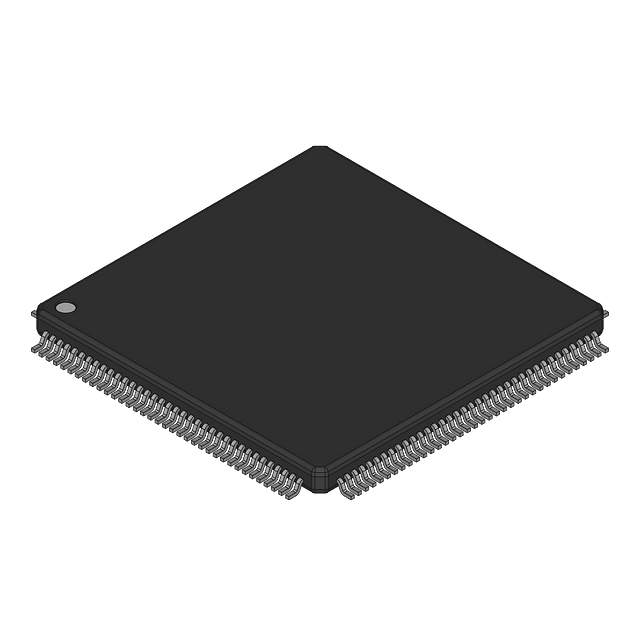

Product Images
