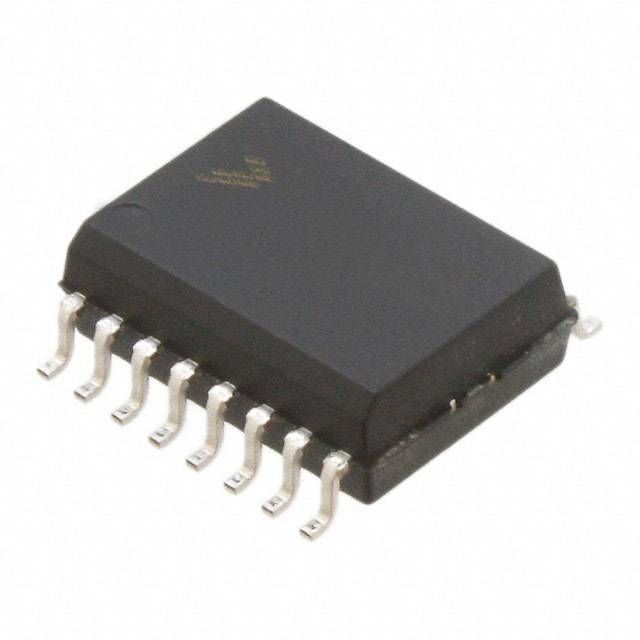

The MC68HC705KJ1CDW is an 8-bit microcontroller from NXP with 1.2KB of EPROM memory and 10 programmable I/Os. It operates at a maximum frequency of 4MHz and has a maximum supply voltage of 5.5V. The device is packaged in a SOIC package and is rated for operation between -40°C and 85°C. It features an internal oscillator and includes peripherals such as a power-on reset and a watchdog timer.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP MC68HC705KJ1CDW datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP MC68HC705KJ1CDW technical specifications.
| Package/Case | SOIC |
| Data Bus Width | 8b |
| Max Frequency | 4MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 1.2KB |
| Memory Type | EPROM, , OTP |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Number of I/Os | 10 |
| Number of Programmable I/O | 10 |
| Number of Timers/Counters | 1 |
| Operating Supply Voltage | 5V |
| Oscillator Type | Internal |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Peripherals | POR, WDT |
| RAM Size | 64B |
| RoHS Compliant | No |
| Series | HC05 |
| RoHS | Not Compliant |
